• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1969 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 327372

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

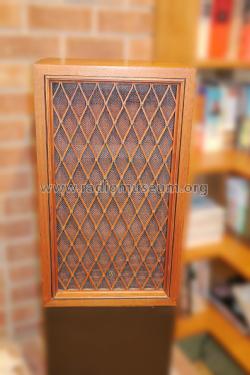

• Model: CS-77 - Pioneer Corporation; Tokyo

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 14.625 x 25.25 x 12.125 inch / 371 x 641 x 308 mm

• Notes

• The CS-77 is a 3-way speaker with a 12-inch diameter woofer and is the earlier version of the Pioneer CS-77A.

• Author
• Model page created by David Erali. See "Data change" for further contributors.
