Elite Reference Stereo Amplifier A-51

Pioneer Corporation; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1991/1992
  • Categoría
  • Amplificador de audio o mezclador
  • Radiomuseum.org ID
  • 335922

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Principio principal
  • Amplificador de Audio
  • Gama de ondas
  • - no hay
  • Especialidades
  • Hi-Fi equipment
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 120 Volt
  • Altavoz
  • - Este modelo usa altavoz exterior (1 o más).
  • Material
  • Metálico
  • de Radiomuseum.org
  • Modelo: Elite Reference Stereo Amplifier A-51 - Pioneer Corporation; Tokyo
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 420 x 162 x 435 mm / 16.5 x 6.4 x 17.1 inch
  • Anotaciones

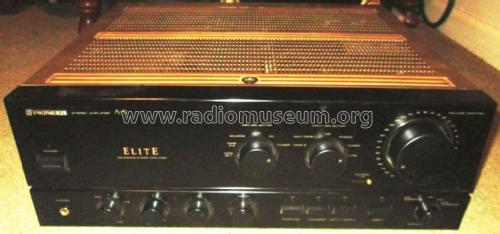

  • A hi-fi stereo integrated amplifier housed in a gold metal case with a black front, with continuous average power output of 2 x 100 watts into 8 ohms. With Bass and Treble tone controls, push button switches for Phono EQ, Loudness, ADPT1/TAPE3, Direct and Muting, rotary switch for Speakers (A,B, A+B) and Phono selector (MM, MC, MM Subsonic, MC Subsonic) and a jack for headphones. On the back, RCA phono sockets for input PHONO, TUNER, CD, and LINE, for input/output TAPE1/DAT, TAPE2, ADAPT1/TAPE3 and ADAPT2 (I/O connected together by removable links), terminals for 2 pairs of loudspeakers (A, B) and 3 100W AC outlets, two switched, one unswitched.

    Similar to the Pioneer A-777 Reference Stereo Amplifier (other markets).

    Specification
    Continuous average power output
    min. into 8 ohms
    from 20Hz—20kHz)
    with no more than 0.007% THD


    100W + 100W
    Continuous average power output
    min. into 4 ohms
    from 20Hz—20kHz)
    with no more than 0.009% THD


    135W + 135W
    DIN Continuous power output
    (both channels driven at 1kHz)
     THD 1.0%, into 8Ω
     THD 1.0%, into 4Ω

    100W + 100W
    150W + 150W
    Power bandwidth 0.05%, 8Ω 5Hz—80kHz
    Damping factor
    (1kHz/20Hz—20kHz), 8Ω
    150/70
    Dynamic power output
    (on EIA dynamic test signal)
     4Ω/2Ω

    220W/350W
    Total harmonic distortion
     20Hz—20kHz, 95W, 8Ω
     20Hz—20kHz, 140W, 4Ω
    0.007%
    0.009%
    IM distortion (at rated output) 0.007%
    Input sensitivity/impedance
     PHONO (MM)
     PHONO (MC)
     CD, TUNER, LINE, TAPE
    2.5mV/50kΩ
    0.2mV/100Ω
    150mV/50kΩ
    Output level/impedance
     TAPE REC, ADAPTOR OUTPUT
    150mV/2.2kΩ
    Frequency response
     PHONO (MM)
     PHONO (MC)
     CD, TUNER, LINE, TAPE
    20Hz—20kHz ±0.2dB
    20Hz—20kHz ±0.3dB
    1Hz—150kHz +0dB,-3dB
    Filter (SUBSONIC) 17Hz (12dB/oct.)
    S/N ratio
    (IHF short circuit, A network)
     PHONO (MM, 5mV input)
     PHONO (MC, 0.5mV input)
     CD, TUNER, LINE, TAPE

    94dB
    76dB
    110dB
    S/N ratio
    (DIN, continuous power/50 mW)
     PHONO (MM)
     CD, TUNER, LINE, TAPE

    74dB/68dB
    92dB/70dB

    Versions/Power requirements

      KU USA 120V AC 60Hz

    Power consumption:  500 Watts

  • Peso neto
  • 19 kg / 41 lb 13.6 oz (41.85 lb)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service manual Pioneer A-51 A-777 A-878 dated May 1991)
  • Autor
  • Modelo creado por Howard Craven. Ver en "Modificar Ficha" los participantes posteriores.
