• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1982 ?

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 241631

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

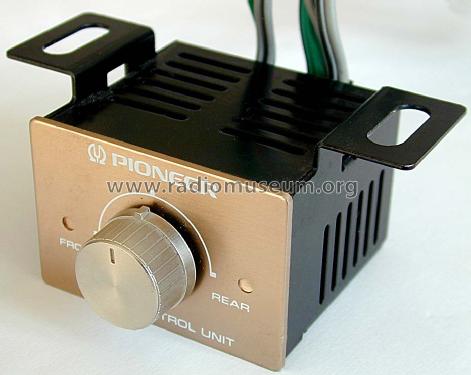

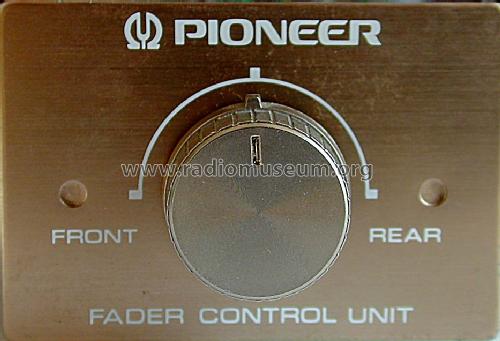

• Model: Fader Control Unit AD-940 - Pioneer Corporation; Tokyo

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 54 x 42 x 50 mm / 2.1 x 1.7 x 2 inch

• Notes

• Belastbarkeit: 2x 20/ 2x 25 W.

• Net weight (2.2 lb = 1 kg)
• 0.280 kg / 0 lb 9.9 oz (0.617 lb)

• Mentioned in
• -- Original prospect or advert (Pioneer Car Stereo Dec.'82)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
