• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1992

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 248522

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

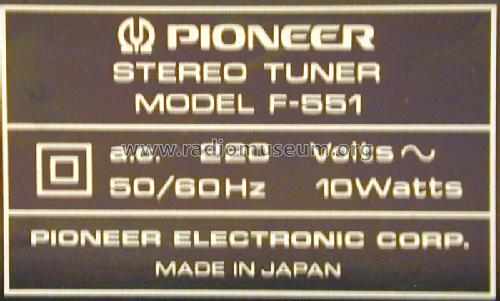

• Model: FM/AM Digital Synthesizer Tuner F-551 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 68 x 200 mm / 16.5 x 2.7 x 7.9 inch

• Notes

• Pioneer FM / AM Digital Synthetizer Tuner F-551

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

Pioneer F551 - Additional service manual

3038 KB

• Documents regarding this model

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
