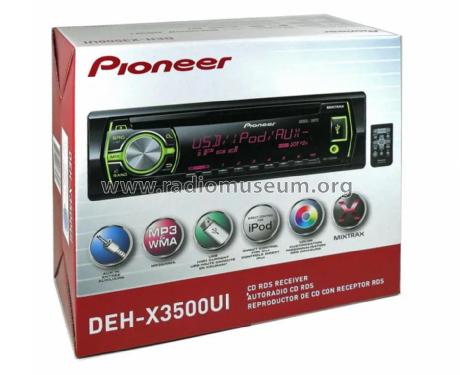

FM/AM/RDS/CD Car Radio Receiver DEH-X3500UI

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 2012 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 356712

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 14 W (50 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM/AM/RDS/CD Car Radio Receiver DEH-X3500UI - Pioneer Corporation; Tokyo
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 188 x 58 x 165 mm / 7.4 x 2.3 x 6.5 inch
  • Notes

  • Power requirement
    14.4 V DC
    (10.8 V to 15.1 V allowable)
    Negative ground
    Maximum current consumption 10 A

    Audio
    Maximum power output 50 W x 4, 70 W x 1/2 Ω for subwoofer
    Continuous power output 22 W x 4 (50 Hz to 15,000 Hz, 5% THD, 4 Ω load, both channels driven)
    Load impedance 4 Ω (4 Ω to 8 Ω allowable)
    Preout maximum signal level 2.0 V
    Loudness contour +10 dB (100 Hz), +6.5 dB (10 kHz) (Volume -30 dB)
    5-Band equaliser frequency 80 Hz/250 Hz/800 Hz/2.5 kHz/8 kHz
    Equalisation range +/-12 dB (2 dB step)
    Mono subwoofer frequency 50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz
    Slope -6 dB/oct, -12 dB/oct
    Gain +6 dB to -24 dB
    Phase Normal/Reverse

    FM Tuner section
    Range 87.5 to 108.0 MHz
    Sensitivity 9 dBf (0.8 µV/75 Ω, mono, S/N 30 dB)
    Signal-to-noise ratio 72 dB (IEC-A network)

    MW Tuner section
    Range 531 kHz to 1,602 kHz
    Sensitivity 25 µV for S/N 20 dB
    Signal-to-noise ratio 62 dB (IEC-A network)

    LW Tuner section
    Range 153 to 281 kHz
    Sensitivity 28 µV for S/N 20 dB
    Signal-to-noise ratio 62 dB (IEC-A network)

    CD Player
    Stereo compact discs
    Signal-to-noise ratio 94 dB (1 kHz) (IEC-A network)
    MP3 decoding format MPEG-1 & 2 Audio Layer 3
    WMA decoding format Ver. 7, 7.1, 8, 9, 10, 11, 12 (2 ch audio) (Windows Media Player)
    WAV signal format Linear PCM & MS ADPCM (non-compressed)

    USB
    USB 2.0 full speed
    Maximum current supply 1 A
    USB Class MSC (Mass Storage Class)
    File system FAT12, FAT16, FAT32
    MP3 decoding format MPEG-1 & 2 Audio Layer 3
    WMA decoding format Ver. 7, 7.1, 8, 9, 10, 11, 12 (2 ch audio) (Windows Media Player)
    WAV signal format Linear PCM & MS ADPCM (non-compressed)

    CEA2006 Specification
    Power output 14 W rms x 4 channels (4 Ω and ≤ 1% THD+N)
    S/N ratio 91 dBA (reference 1 W into 4 Ω)

  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Mentioned in
  • - - Manufacturers Literature (Pioneer DEH-X3500UI Owner's Manual)
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
