• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1979/1980

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 208442

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

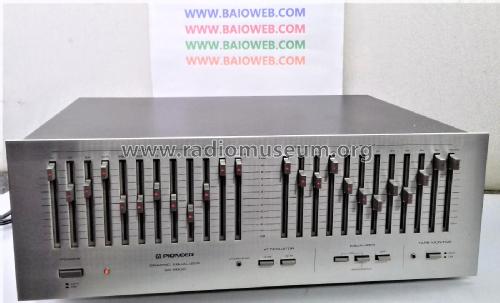

• Model: Graphic Equalizer SG-9800 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 16.5 x 6 x 14 inch / 419 x 152 x 356 mm

• Notes
• 2x 12 Band Graphic Equalizer with a boost/cut range of 10 dB, THD 0.02%.

• Net weight (2.2 lb = 1 kg)
• 15 lb 5 oz (15.313 lb) / 6.952 kg

• Price in first year of sale
• 395.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
