• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1980 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 196770

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: KP-4500 - Pioneer Corporation; Tokyo

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 185 x 220 x 60 mm / 7.3 x 8.7 x 2.4 inch

• Notes

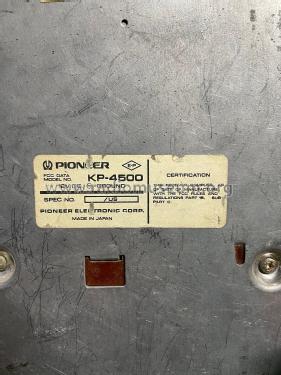

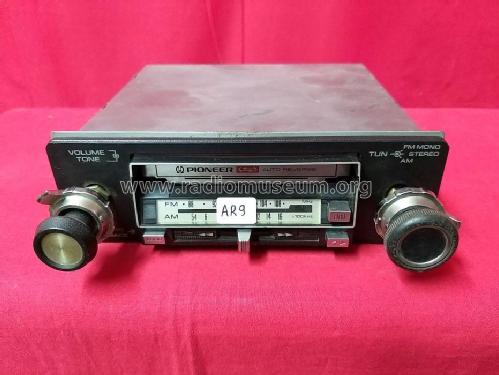

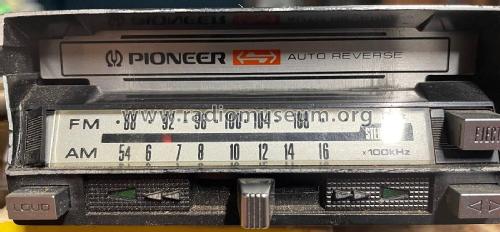

• AM/FM Car Stereo Cassette Deck Model Pioneer KP-4500.
  FM Muting
  Stereo/Mono
  12V DC -Ground
  Auto reverse, Tape Guard
  Volume, balance & tone controls
  LED stereo indicator, Loudness Control
  Locking fast forward & rewind
  Chassis Size Code B

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Mentioned in
• -- Original prospect or advert (Pioneer Catalogue 1982)

• Author
• Model page created by Gil Silva. See "Data change" for further contributors.
