Multi Compact Disc Player PD-M426

Pioneer Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Pioneer Corporation; Tokyo

Year
1997

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
247427

Schematics

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752519) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1599684) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1599686) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1599689) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1599691) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752518) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752520) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

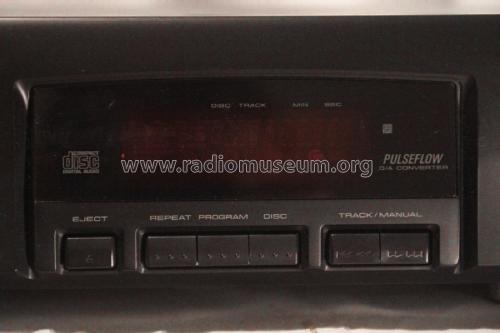

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752521) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752522) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752523) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752524) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752526) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Multi Compact Disc Player PD-M426; Pioneer Corporation; (ID = 1752528) R-Player — Pioneer Corporation; Multi Compact Disc Player PD-M426 (1)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

Power type and voltage
Alternating Current supply (AC) / 120; 110-127; 220-240 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Multi Compact Disc Player PD-M426 - Pioneer Corporation; Tokyo

Shape
Book-shelf unit.

Dimensions (WHD)
420 x 105 x 294 mm / 16.5 x 4.1 x 11.6 inch

Notes

A stereo hi-fi 6 disc magazine changer compact disc player. 1 Bit Direct Linear Conversion System (1 bit DLC) or Pulseflow D/A Converter.

Specification
Type	Compact disc digital audio system
Number of channels	2 channels (stereo)
Frequency response	2Hz-20kHz
S/N ratio	98dB
Dynamic range	95dB
Total harmonic distortion	0.005%
Output voltage	2.0 V
Wow and flutter	Limit of measurement
Output terminals
Audio line output phono sockets
Control input/output jacks (US & Canada models)

Versions/Power requirements
European model          / 220 - 240V AC 50/60 Hz
Australian & NZ models     / 220 - 240V AC 50/60 Hz
US & Canadian models   / 120V AC 60Hz
Multi-voltage model       / 110-127/220-240V AC 50/60 Hz (with voltage selector)

Power consumption        12 W (US & Canada model 10 W)

CD-Wechsler für 6-fach CD-Magazine, die auch in Pioneer Auto-HiFi-Anlagen Anwendung finden.

Disc format: CD (6 disc multi play)
Digital converter: 1 bit DLC
Frequency response: 2Hz to 20kHz
Dynamic range: 95dB
Signal to Noise Ratio: 98dB
Total harmonic distortion: 0.005%
Line output: 2V

Net weight (2.2 lb = 1 kg)
3.7 kg / 8 lb 2.4 oz (8.15 lb)

Price in first year of sale
45,000.00 pte

Mentioned in
-- Original prospect or advert (1998-1999 Home Entertainment Components catalogue)

Literature/Schematics (1)
- - Manufacturers Literature (Operating instructions PDM-406 PDM-426 dated 1997)

Literature/Schematics (2)
- - Manufacturers Literature (Service manual PD-M426 dated Oct 1997)

Author
Model page created by Manuel Albano Neves. See "Data change" for further contributors.
