Multi-Play Compact Disc Player PD-M603

Pioneer Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Pioneer Corporation; Tokyo

Year
1994 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
261476

Schematics

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753222) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753223) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753224) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753225) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753227) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753228) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753229) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

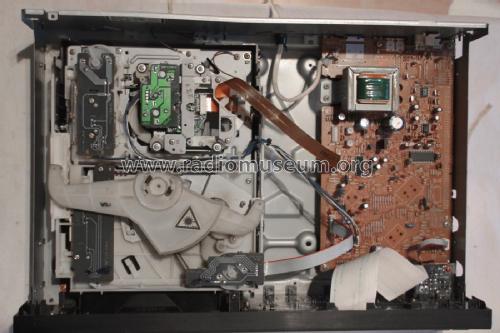

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753230) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

Multi-Play Compact Disc Player PD-M603; Pioneer Corporation; (ID = 1753231) R-Player — Pioneer Corporation; Multi-Play Compact Disc Player PD-M603 (1)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
CD-Player, -Writer, MD, MOD (audio)

Power type and voltage
Alternating Current supply (AC) / 220-240 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Multi-Play Compact Disc Player PD-M603 - Pioneer Corporation; Tokyo

Shape
Book-shelf unit.

Dimensions (WHD)
420 x 105 x 299 mm / 16.5 x 4.1 x 11.8 inch

Notes
Disc format: CD (6 disc multi play)
Digital converter: PD2026B
CD Mechanism: PEA1179
Frequency response: 2 Hz to 20 kHz
Dynamic range: 96 dB
Signal to Noise Ratio: 102 dB
Total harmonic distortion: 0.003%
Line output: 2 V

Net weight (2.2 lb = 1 kg)
3.9 kg / 8 lb 9.4 oz (8.59 lb)

Author
Model page created by Bartosz Szwed. See "Data change" for further contributors.
