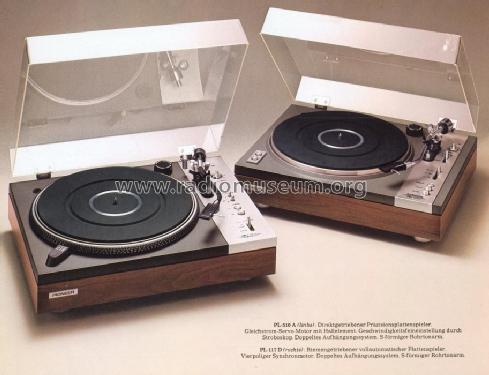

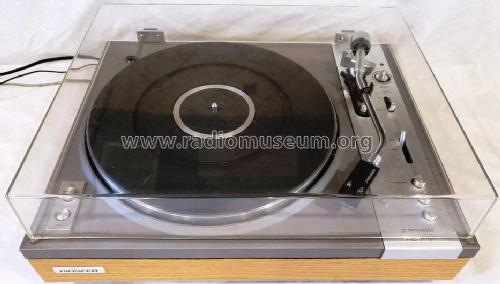

Stereo Turntable PL-117D

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1976/1977
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 154118

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 220 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Turntable PL-117D - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 440 x 159 x 362 mm / 17.3 x 6.3 x 14.3 inch
  • Notes

  • A two speed 33/45rpm hi-fi belt drive fully automatic stereo turntable complete with tonearm. Cartridge fitted to the QT and Q models.

    Features
    Fully automatic tonearm system
    Anti-skating force control device
    Plug-in type headshell
    Oil-damped arm elevator device
    Hinges (Free adjustable)
    Lateral balancer

    Specification
    Motor:                            4-pole synchronous
    Turntable drive:               Belt-driven
    Speed:                          Two speeds: 33⅓rpm, 45rpm
    Wow and flutter:             0.07% (WRMS) or less
    S/N:                              63dB (DIN B) or more (with Pioneer PC-135 cartridge)
    Turntable platter:            30cm diam. aluminum alloy

    Versions/Power Requirements
    KCT, KUT / 120 V AC 60 Hz
    QT, Q       / 120 / 240 V AC 50/60Hz Switchable
    HGT         / 220 - 240 V AC 50Hz

    Vollautomat, 33 und 45 upM, Riemenantrieb, 4 Pol Synchronmotor, Antiskating.
    Gleichlaufschwankung 0,1%, Geräuschspannungsabstand 63dB.

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (PL-117D Operating Instructions manual)
  • Literature/Schematics (3)
  • - - Manufacturers Literature (PL-117D Service manual dated May 1976)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
