Stereo Turntable PL-12D

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1972
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 118918

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-130 or 220-240 or 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Turntable PL-12D - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 430 x 160 x 349 mm / 16.9 x 6.3 x 13.7 inch
  • Notes

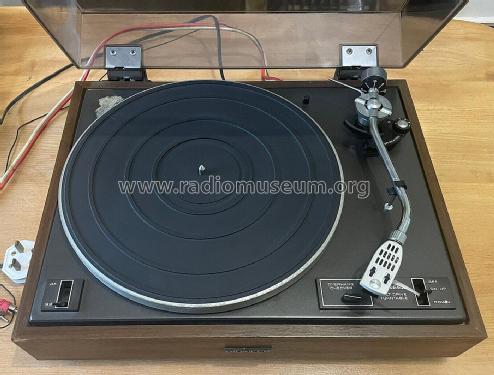

  • A two speed 33/45rpm hi-fi belt drive stereo turntable complete with tonearm.

    Features
    Anti-vibration sprung floating chassis
    Detachable Acrylic lid

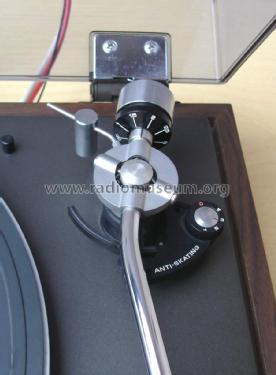

    Anti-skating device control
    Lateral balance control
    Light aluminum head shell SME plug-in type
    Hydraulic cueing device
    Built-on cartridge overhang checker

    Specification
    Motor:                            4-pole synchronous motor
    Turntable drive:               Belt-drive
    Speed:                          Two speeds, 33⅓ and 45 rpm
    Speed accuracy:            1.0% or less
    Wow and flutter:             0.1% (WRMS) or less
    S/N:                              47dB or more
    Turntable platter:            12" (30 cm) diameter aluminum alloy die-cast
    Tonearm type:                Static balance type, pipe arm (S shaped)
    Effective arm length:       221mm
    Usable cartridge weight:  4-10g

    Power requirements:      110-130V/220-240V (switchable) or 220V AC 60Hz/50Hz
    Power consumption:      10W (Max.)

    Accessories
    Lubricator                 1     EP record adaptor .    1          Cartridge mounting nuts: 2
    Screwdriver:              1     Motor pulley:             1          Weight plate:                 1
    Sub-weight:              1     Operating instuctions  1         (cartridge weight-adjustable)

  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Source of data
  • - - Data from my own collection
  • Literature/Schematics (1)
  • - - Manufacturers Literature (PL-12D operating instructions)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
