Stereo Turntable PL-12D-II (2)

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1975
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 251277

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 220 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Stereo Turntable PL-12D-II - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 430 x 167 x 349 mm / 16.9 x 6.6 x 13.7 inch
  • Notes

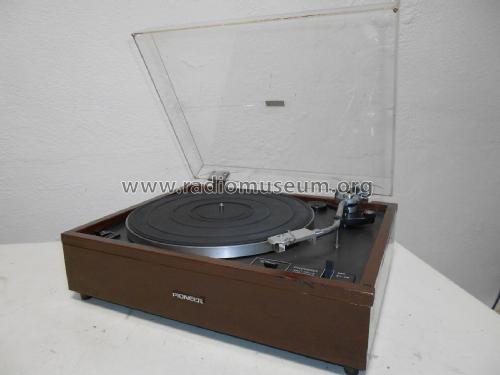

  • A two speed belt drive hi-fi stereo turntable complete with tonearm.

    Features
    Anti-skating device
    Lateral balance
    Viscous-damped arm elevation
    Plug-in light aluminium headshell
    Counterweight with tracking force adjustment guage
    Overhang checker
    Foil lined walnut grained vinyl base
    Hinged dust cover

    Specification
    Motor:                            4-pole synchronous motor
    Turntable drive:               Belt-drive
    Speed:                          Two speeds, 33⅓ and 45 rpm
    Wow and flutter:             0.08% (WRMS) or less
    S/N:                              48 dB or more
    Turntable platter:            12" (30 cm) diameter aluminum alloy die-cast
    Tonearm type:                Static balance type, S-shaped pipe arm
    Effective arm length:       221 mm
    Usable cartridge weight:  4-10 g

    Versions/Power Requirements
    YPT NBT HVT /  AC 220/240 V, or 220 V or 240 V 50Hz
    KUT KCT        /  AC 120 V 60Hz
    Power consumption:      11 W

    See also the earlier similar Pioneer PL-12D Stereo Turntable

  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (PL-12D-II KUT KCT Service manual)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (PL-12D-II YPT NBT HVT Operating Instructions)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
