Linear Motor Arm Stereo Turntable PL-L1000

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1979–1981
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 101304

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 14
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Linear Motor Arm Stereo Turntable PL-L1000 - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 494 x 154 x 456 mm / 19.4 x 6.1 x 18 inch
  • Notes

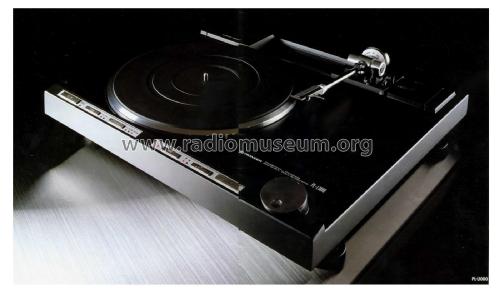

  • Pioneer 2-Speed Direct-Drive Full Automatic Turntable with Linear Tracking Arm Model PL-L1000.
    Drive system: direct drive
    Motor: quartz PLL hall motor
    Platter: 310mm aluminium alloy diecast
    Speeds: 33 and 45rpm
    Wow and flutter: less than 0.013% WRMS
    Signal to noise ratio: more than 78dB

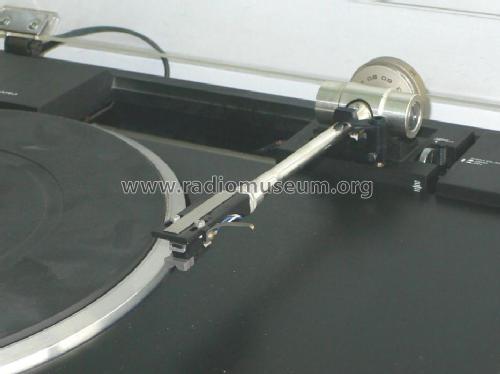

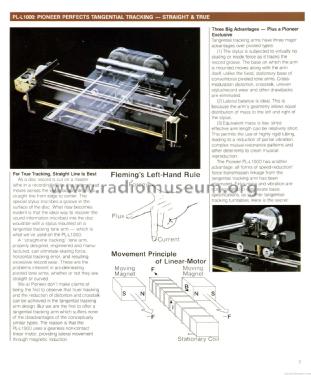

    Tonearm: linear direct drive motor, static balance, linear tracking
    Effective length: 190mm
    Overhang: zero
    Cartridge weight range: 4 to 24g
    Headshell weight: 10.5g

    Accessories:
    EP adaptor, screwdriver, overhang gauge, level, cleaning cloth, cartridge mounting parts, cartridge (PC-600)

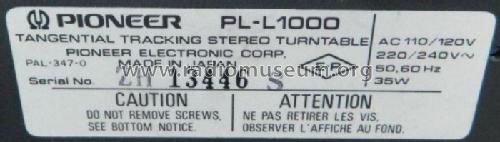

    Suffix:
    HET - 220VAC & 240VAC Switchable - Europe Model (Without Cartridge)
    HBT - 220VAC & 240VAC Switchable - United Kingdom Model (Without Cartridge)
    S/G - 110VAC, 120VAC, 220VAC, 240VAC and (Switchable) - U.S. Military Model (With Cartridge)

  • Net weight (2.2 lb = 1 kg)
  • 12.4 kg / 27 lb 5 oz (27.313 lb)
  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Peter Böhm. See "Data change" for further contributors.
