Portable DVD Player PDV-LC10

• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1999 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 327737

• Picture

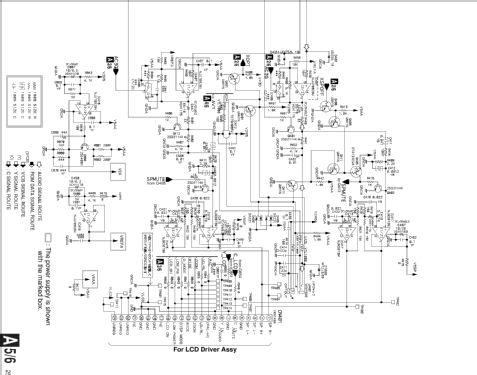

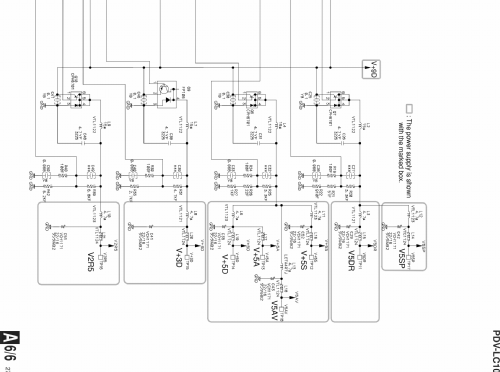

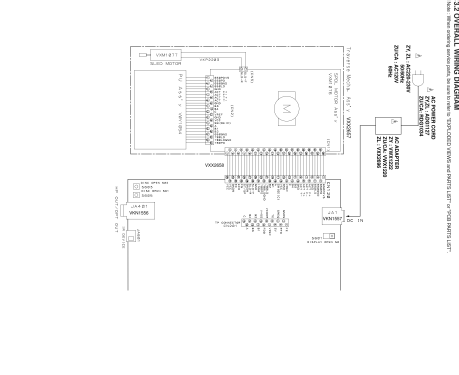

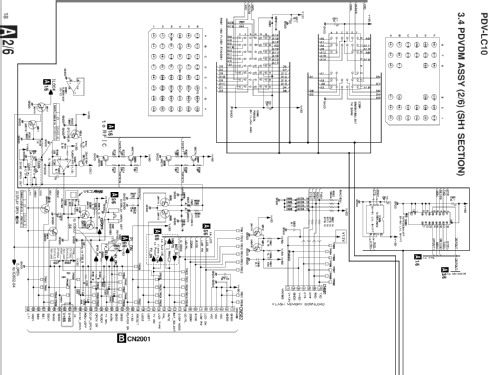

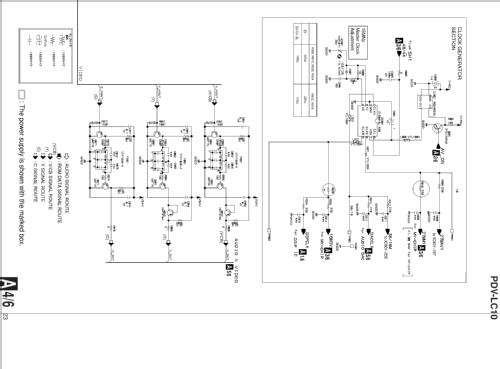

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• CD-DVD-VMD-Blu-ray for video

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 120 or 230 / 8.4 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable DVD Player PDV-LC10 - Pioneer Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 190 x 142 x 28 mm / 7.5 x 5.6 x 1.1 inch

• Notes
• • DVD, Video Cd and compac disc digital audio system
  • Battery pack 8.4 V type VWY1061
  • Output Super Video
  • AV input 7 output

  Versions:

  • ZY /  ZL:  230 VAC Adapter or Battery Pack
  • ZU / CA: 120VAC Adapter or Battery Pack

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
