Portable Stereo Radio Cassette SK-757F

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 266205

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 120; 220; 240 / 12 / D: 8 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Stereo Radio Cassette SK-757F - Pioneer Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

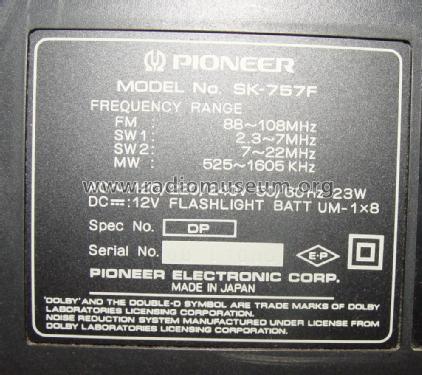

  • MW: 525 - 1605 kHz
    SW1: 2.3 - 7 MHz
    SW2: 7 - 22 MHz
    FM: 88 - 108MHz

    23 W power consumption.

    Made in Japan.

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
