Reference Compact Disc Player PD-91

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 313744

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Reference Compact Disc Player PD-91 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 458 x 129 x 425 mm / 18 x 5.1 x 16.7 inch
  • Notes

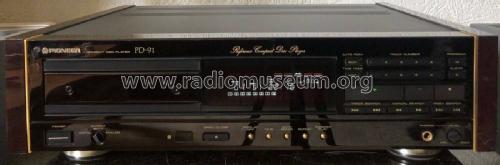

  • A stereo hi-fi compact disc player with remote control (CU-PD011) housed in a black metal case with a black laquered fascia and rosewood side panels. Copper plated honeycomb chassis, twin linear envelope 18 bit DAC with an 8 times oversampling digital filter. RCA phono sockets for Line Output and Coaxial Digital output, terminal for Optical Digital output. Jack for headphones with volume control.

    Functions
    • Play
    • Pause
    • Manual search
    • Track search
    • Index search
    • Direct track search
    • All track repeat
    • Programmed repeat
    • Programmed playback
    • Pause program
    • Add-on program
    • Auto program editing
    • Time fade editing
    • Music Window (remote control)
    • One touch fade (remote control)
    • Fade time variation
    • Random play
    • Programmed random play
    • Auto space
    • Memory backup
    • Timer start
    • Random timer start
    • Program timer start

    Specification
    Type Compact disc digital audio system
    Usable discs Compact Disc
    Signal format Sampling frequency: 44.1 kHz
    Quantized bit number: 16 bit linear
    D/A conversion 18 bit
    Frequency response 2 Hz - 20 kHz ( ±0.3 dB)
    Signal-to-noise ratio 114 dB or more (EIAJ)
    Dynamic range 99 dB or more (EIAJ)
    Channel separation 109 dB or more (EIAJ)
    Total Harmonic Distortion 0.0015% or less (EIAJ)
    Output voltage  2.0 V ± 0.5 V (EIAJ)
    Wow and flutter Limit of measurement
    Number of channels 2 channels (stereo)
    Digital output  Coaxial output: 0.5 Vp-p (75Ω)
    Optical output: -15 dBm to -20 dBm (wavelength 660 nm)

    Versions/Power requirements

    KU/CA U.S.A. and Canada AC120V 60 Hz only
    HEM European Continent AC220, 240V 50/60 Hz (internally switchable)

    Power consumption:  29 watts

  • Net weight (2.2 lb = 1 kg)
  • 11.7 kg / 25 lb 12.3 oz (25.771 lb)
  • Mentioned in
  • -- Original prospect or advert (1989 Pioneer Hi-Fi Components catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual Compact Disc Player PD-91)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
