• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1977

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 171956

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 64 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

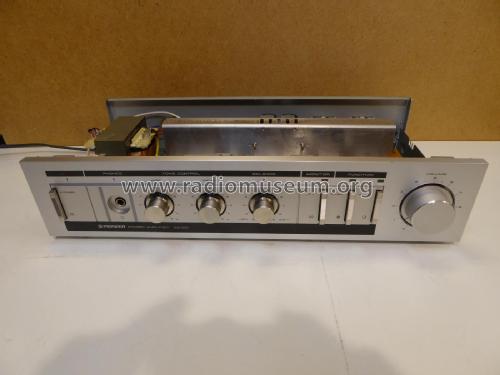

• Model: Stereo Amplifier SA-301 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 98 x 234 mm / 16.5 x 3.9 x 9.2 inch

• Notes
• Stereo Integrated Power Amplifier 32+32W at 8 ohms 1%THD.
  Seven transistors and two IC.

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
