Stereo Amplifier SA-330

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1982
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 157005

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220/240; 240; 110/120/220/240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org

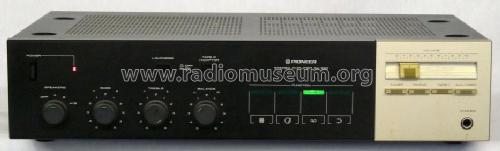

  • Model: Stereo Amplifier SA-330 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 97 x 275 mm / 16.5 x 3.8 x 10.8 inch
  • Notes

  • A hi-fi stereo integrated amplifier housed in a metal case with continuous average power output of 2 x 30 watts into 8 ohms. Terminals for two pairs of loudspeakers, jack for headphones, 2 switched and 1 unswitched AC outlets.

    Hifi-Stereo-Amplifier, Ausgangsleistung 2x40Watt an 8Ohm (DIN), 2 Lautsprechergruppen (A/B) schaltbar, Kopfhöreranschluß an 6,3mm Klinkenbuchse.
    Eingänge: Tuner/ Phono-2,5mV-50kOhm/ Tape1/ Tape2/ Aux-Video, Loudness zuschaltbar,
    2 abschaltbare Netzausgänge max. 80Watt, 1 nicht abschaltbarer Netzausgang 100Watt für den Anschluß von Systemkomponenten. Netzstromaufnahme Verstärker max. 200Watt.

    Specification
    Continuous average power output

         		 30 watts per channel min. into 8Ω
    from 30Hz — 20,000Hz
    with no more than 0.08% THD
    Continuous Output at 1kHz
    (both channels driven) THD 1%, 8Ω
     40 watts per channel
    Total Harmonic Distortion
    (20Hz — 20,000Hz, 8Ω,
    from AUX/VIDEO)
     14 watts per channel output


    No more than 0.03%
    Intermodulation Distortion
    8Ω, from AUX/VIDEO
     Continuous rated output
     14 watts per channel power output    		 No more than 0.08%
    No more than 0.05%
    Damping Factor (1kHz, 8Ω) 30
    Input
    (Sensitivity/Impedance)
     PHONO
     TUNER, AUX/VIDEO, TAPE 1,2/ADAPTOR    		 2.5mV/50kΩ
    150mV/50kΩ
    Output (Level)
     TAPE REC 1,2/ADAPTOR
     Speaker    		 150mV
    A, B, A+B, OFF
    Frequency Response
     PHONO (RIAA Equalization)
     TUNER, AUX/VIDEO, TAPE PLAY 1,2/ADAPTOR    		 20Hz to 20,000Hz ±0.5dB
    10Hz to 60,000Hz ±2dB
    Hum and Noise
    (IHF, short-circuited, A network)
     PHONO
     TUNER, AUX/VIDEO, TAPE PLAY 1,2/ADAPTOR    		 72dB
    97dB
    Hum and Noise
    (DIN continuous Power/50mV)
     PHONO
     TUNER, AUX/VIDEO, TAPE PLAY 1,2/ADAPTOR    		 71dB/62dB
    88dB/62dB

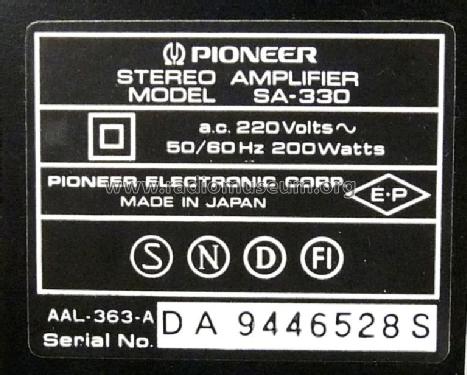

    Versions/Power requirements

    HE Europe 220/240V AC 50/60Hz switchable
    S General 110/120/220/240V AC 50/60Hz with voltage selector
    YP Australia 240V AC 50/60Hz
    HEZ W Germany 220/240V AC 50/60Hz switchable

    Power consumption:  200 watts max.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual SA-330 dated May 1982)
