Stereo Amplifier SA-6200

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1973–1975
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 79414

 Technical Specifications

  • Number of Transistors
  • 26
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110/120/130/220/240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 30 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Amplifier SA-6200 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 415 x 138 x 328 mm / 16.3 x 5.4 x 12.9 inch
  • Notes

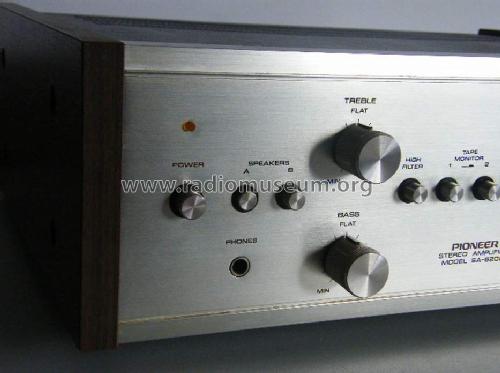

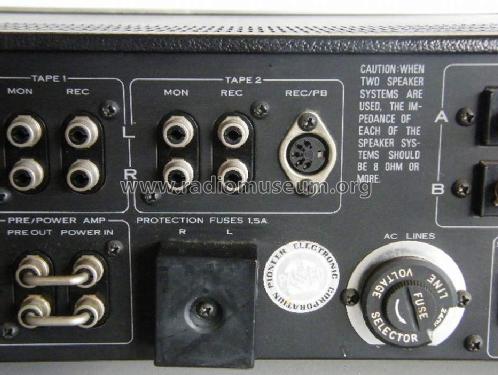

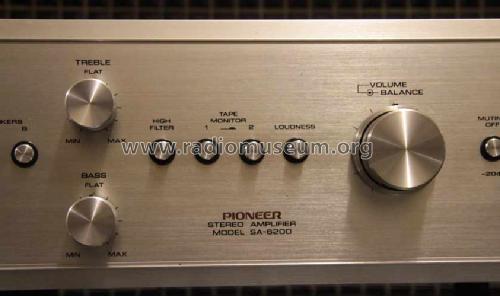

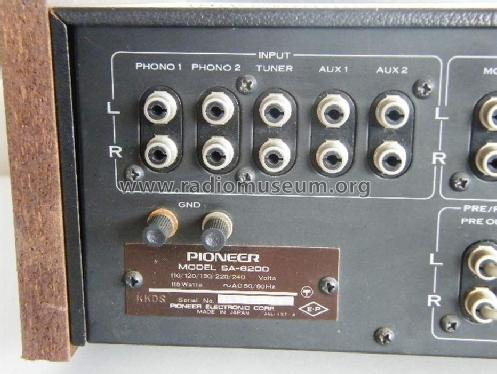

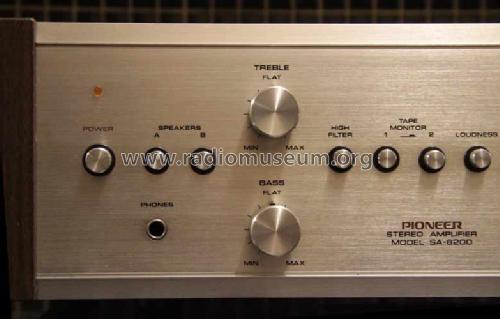

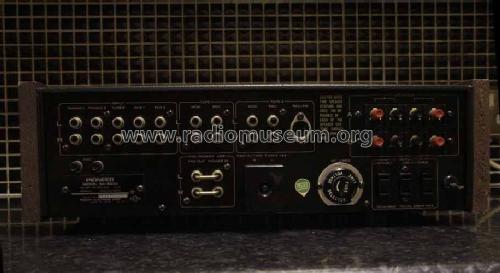

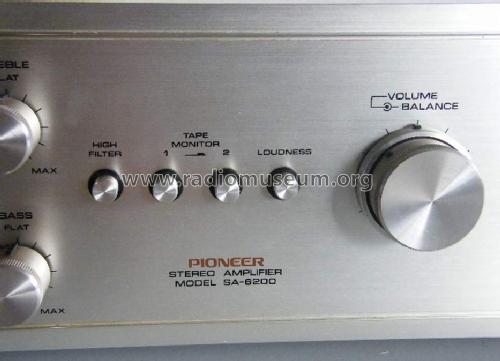

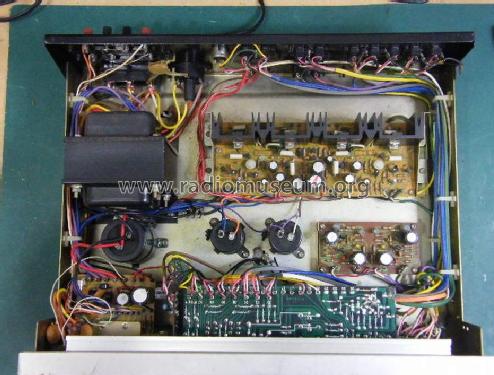

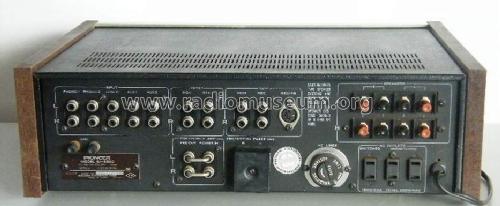

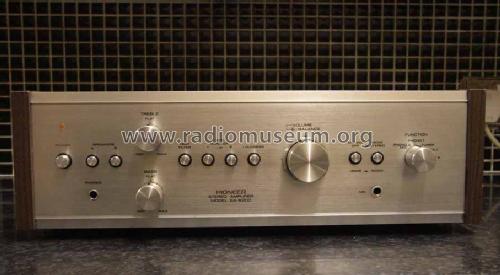

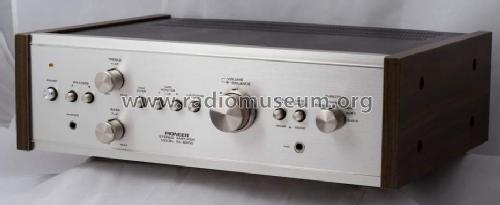

  • A hi-fi stereo integrated amplifier housed in a wooden case with continuous power output of 2 x 15 Watts into 4 ohms or 8 ohms. Power amplifier section can separated from the preamplifier by the removal of two links. With Bass and Treble tone control, Loudness, High Filter, Muting, Mode (Stereo, Mono),  jacks for headphones and microphone. RCA phono sockets for input Phono1, Phono2, Tuner, Aux1 and Aux2, for inputs/outputs for Tape1 Tape2, DIN socket for Tape2 Rec/PB, terminals for two pairs of loudspeakers 4-16 ohms, one switched and two unswitched AC outlets.

    Stereo amplifier 2x 15 Watt Potencia RMS por canal 22W a 4 ohmios-18W a 8 ohmios Distorsion Armonica: <0,5% a la potencia máxima de Salida-<0,1% a 1W Distorsion de Intermodulacion <0,5% a la potencia de salida maxima,<0,1% a 1W.

    Specification
    Power Amplifier Section
    Continuous Power Output
     Both channels driven 20Hz-20kHz
     Harmonic Distortion
     Intermodulation Distortion    		 15W+15W (8Ω or 4Ω)
    < 0.5%
    < 0.5%
    Power Bandwidth (IHF) 10Hz-70kHz (THD 0.5%)
    Frequency Response 15Hz-80kHz +0dB,-1dB
    Input Sensitivity/Impedance
      POWER AMP IN    		 500mV/50kΩ
    Output, Speaker
                 Headphones    		 A, B, A+B (4-16Ω)
    4-16Ω
    Damping Factor (1kHz, 8Ω) > 30
    Hum & Noise
     (IHF, Short-circuited, A Network)    		 > 90dB
    Residual Hum & Noise
     (8Ω, Pre & Power-amplifier)    		 < 1mV (0.13µW)
    Preamplifier Section
    Input Sensitivity/Impedance
     PHONO1
     PHONO2
     MIC
     TUNER
     AUX1
     AUX2
     TAPE MONITOR1 2
     TAPE MONITOR2 (DIN connector)
    2.5mV/50kΩ
    2.5mV/50kΩ
    7.5mV/50kΩ
    150mV/100kΩ
    150mV/100kΩ
    150mV/100kΩ
    150mV/100kΩ
    150mV/100kΩ
    Output Level/Impedance
     TAPE REC1, 2
     TAPE REC2 (DIN connector)
     PRE AMP OUT
    150mV/1.4kΩ
    30mV/80kΩ
    500mV/4.7kΩ
    Harmonic Distortion (20Hz-20kHz) < 0.2%
    Frequency Response
     PHONO (RIAA equalization)
     TUNER, AUX, TAPE MON
    30Hz-15kHz ±0.5dB
    15Hz-30kHz ±1dB
    Hum & Noise
    (IHF, Short-circuited, A Network)
     PHONO
     MIC
     TUNER, AUX, TAPE MON

    > 75dB
    > 80dB
    > 90dB

    Semiconductors:  26 Transistors, 11 Diodes

    Versions/Power requirements
    FV  /  110/120/130/220/240V AC 50/60Hz with voltage selector

    Power consumption:  115 watts

  • Net weight (2.2 lb = 1 kg)
  • 8.1 kg / 17 lb 13.5 oz (17.841 lb)
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • - - Manufacturers Literature (1973/74 & 1974/75 Pioneer Hi-Fi Stereo catalogues)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Operating Instructions Pioneer SA-6200)
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
