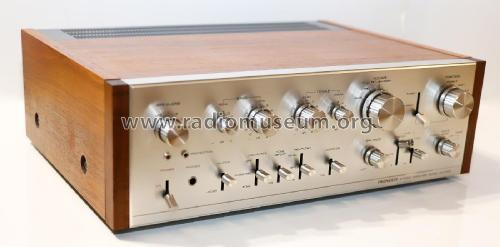

Stereo Amplifier SA-9100

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1973/1974
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 143192

 Technical Specifications

  • Number of Transistors
  • 63
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 170 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Amplifier SA-9100 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 138 x 341 mm / 16.9 x 5.4 x 13.4 inch
  • Notes

  • Pioneer SA-9100

    Stereo-HiFi-Vollverstärker mit Ausgangsleistung von:

    • 2 x 85 Watt Sinusleistung an 4 Ω (1.000 Hz)
    • 2 x 65 Watt Sinusleistung an 8 Ω (1.000 Hz)
    • 2 x 75 Watt Dauerleistung an 4 Ω (20 - 20.000 Hz)
    • 2 x 60 Watt Dauerleistung an 8 Ω (20 - 20.000 Hz)

    Klirrgrad bei Nennleistung kleiner 0,1 %, Frequenzgang 7 - 80.000 Hz (+0,-1 dB)

    Maximale Leistungsaufnahme 400 Watt, Verkaufspreis (1974) DM 1.772,-

  • Net weight (2.2 lb = 1 kg)
  • 13.6 kg / 29 lb 15.3 oz (29.956 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • Katalog 1973 und 1974
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Bedienungsanleitung)
  • Literature/Schematics (2)
  • HiFi Jahrbuch 1974
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
