Stereo Amplifier SA-606

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1978/1979
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 214071

 Technical Specifications

  • Number of Transistors
  • 25
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220/240; 110/120/220/240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Amplifier SA-606 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 147 x 261 mm / 16.5 x 5.8 x 10.3 inch
  • Notes

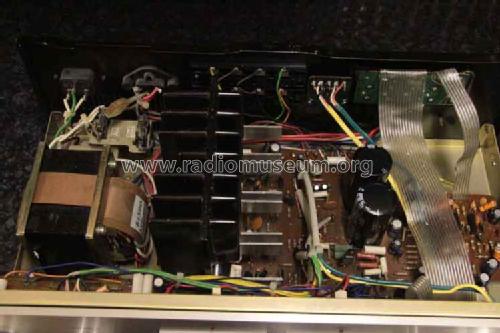

  • A hi-fi stereo integrated amplifier housed in a wooden case with continuous power output of 2 x 40 watts into 8 ohms. With two VU power meters and Peak Power indicators, rotary controls for Volume, Balance, Bass and Treble, rotary switches for Speakers (Off. A, B, A+B) and Function (Tuner, Phono, Aux), switches for Power, Loudness and Tape Monitor and a jack for Headphones. On the rear panel, RCA phono sockets for input Phono, Tuner and Aux, for input/output Tape, on the HG version a DIN socket for Tape, terminals for two pairs of loudspeakers (A, B), voltage selector and on the S and S/G versions three AC outlets, two switched (total 100W max) and one unswitched (200W max.).

    Specification
    Amplifier Section
    Continuous power output 40 watts per channel into 8Ω
    from 20Hz to 20,000Hz
    with no more than 0.05% THD
    THD (20Hz-20kHz, from AUX)
     continuous rated power output
     20 watts per channel power output, 8Ω
     1 watt per channel power output, 8Ω
    No more than 0.05%
    No more than 0.03%
    No more than 0.03%
    Intermodulation Distortion
     continuous rated power output
     20 watts per channel power output, 8Ω
     1 watt per channel power output, 8Ω
    No more than 0.05%
    No more than 0.02%
    No more than 0.02%
    Damping Factor (20Hz-20kHz, 8Ω) 30
    Input (Sensitivity/Impedance)
     PHONO
     TUNER
     AUX
     TAPE PLAY
     TAPE PLAY (DIN connector, HG model)
    2.5mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    Output (Level/Impedance)
     TAPE REC
     TAPE REC (DIN connector, HG model)
     Speaker
    150mV
    30mV/80kΩ
    A, B, A+B
    Frequency Response
     PHONO (RIAA Equalization)
     TUNER, AUX, TAPE PLAY
    20Hz-20kHz ±0.3dB
    20Hz-40kHz ±2dB
    Hum and Noise
    (IHF, short-circuited, A network)
     PHONO
     TUNER, AUX, TAPE PLAY

    78dB
    95dB
    Hum and Noise
    (DIN, continuous power/50mW)
     PHONO
     AUX

    58dB/66dB
    60dB/85dB

    Semiconductors: 2 ICs, 25 Transistors, 27 Diodes

    Versions/Power requirements

    S General export 110V, 120V, 220V, 240V AC 50/60Hz with voltage selector
    S/G U.S. Military 110V, 120V, 220V, 240V AC 50/60Hz with voltage selector
    HG Europe, Oceania 220V/240V AC 50/60Hz with voltage selector

    Power Consumption: 420W (HG), 100W (S, S/G)

    Similar to the US and Canada market Pioneer SA-6700 Stereo Amplifier which is housed in a wooden case.

  • Net weight (2.2 lb = 1 kg)
  • 8.2 kg / 18 lb 1 oz (18.062 lb)
  • Mentioned in
  • - - Manufacturers Literature (1978/79 Pioneer Hi-Fi Stereo catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual Pioneer SA-6700 SA-606)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions SA-606)
