Stereo Amplifier SA-9800 /HG
Pioneer Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Pioneer Corporation; Tokyo
- Year
- 1980/1981
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 307570
Bild von selber repariertem Gerät
Foto eines von mir reparierten Gerätes

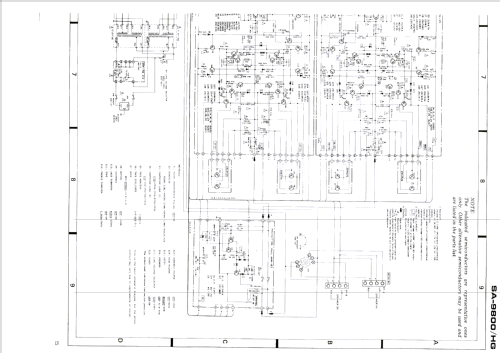

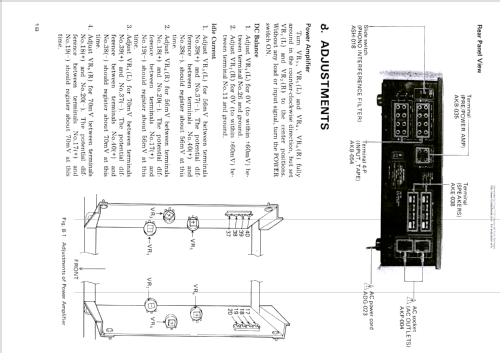

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 73
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 200 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Amplifier SA-9800 /HG - Pioneer Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 453 x 155 x 425 mm / 17.8 x 6.1 x 16.7 inch
- Notes
-
2x100 Watt an 8 Ohm mit Klirrfaktor 0,005%. Eingänge. 2x Plattenspieler, 2x TB, 1x Tuner, 1x TB, Ausgänge: 2 Paar LS, 1x Kopfhörer.
3 ICs, 6 FETs
- Net weight (2.2 lb = 1 kg)
- 18.4 kg / 40 lb 8.5 oz (40.529 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- -- Original-techn. papers. (Aus dem Pioneer Prospekt der HIFI Düsseldorf 1980.)
- Literature/Schematics (1)
- -- Original prospect or advert (Pioneer HiFi-Stereo 1980/81)
- Author
- Model page created by Wolfgang Moldenhauer. See "Data change" for further contributors.
