• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1967 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 281533

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 12AX7 12AX7 12AX7 6AN8 6AN8 6BQ5 6BQ5 6BQ5 6BQ5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

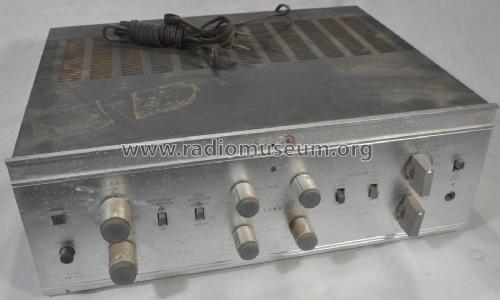

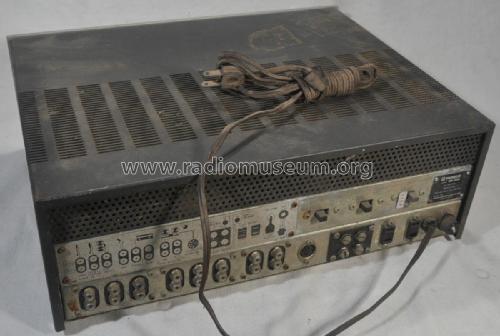

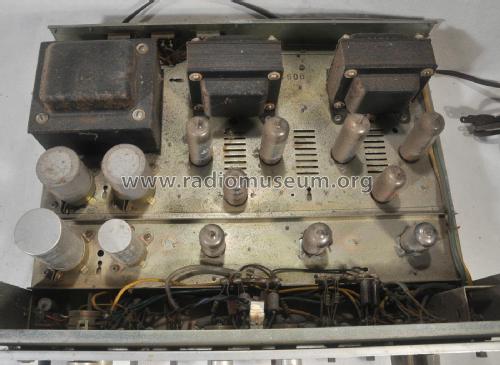

• Model: Stereo Amplifier SM-500 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 150 x 350 mm / 15.4 x 5.9 x 13.8 inch

• Notes

• Integrated amplifier; very similar to Pioneer SM-83.

• Mentioned in
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
