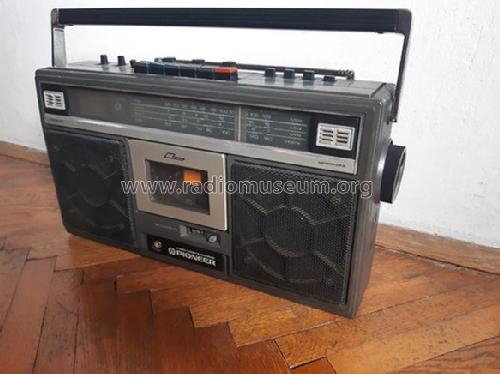

Stereo Cassette Recorder SK-1 YP, P

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 313586

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 8 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 120/220 or 240 / DC 9 / D: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 12 cm = 4.7 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Cassette Recorder SK-1 YP, P - Pioneer Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 390 x 217 x 99 mm / 15.4 x 8.5 x 3.9 inch
  • Notes

  • Versions:

    • P AC 50/60 Hz, 120/220 V
    • YP AC 50 Hz, 240 V

    See also Pioneer SK-1 KU with AM/FM for AC 60 Hz, 120 V (USA).

  • Net weight (2.2 lb = 1 kg)
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • Author
  • Model page created by Milosav Zivojinovic. See "Data change" for further contributors.
