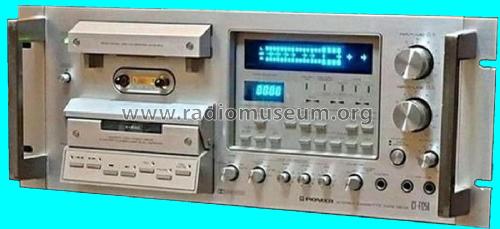

Stereo Cassette Tape Deck CT-F1250 All (HE,HB,D,D/G)

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1979
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 145836

 Technical Specifications

  • Number of Transistors
  • 139
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Tape Deck CT-F1250 [All ] - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 187 x 369 mm / 16.5 x 7.4 x 14.5 inch
  • Notes
  • Pioneer CT-F1250 Stereo Cassette Tape Deck;
    3 Head Quartz Lock Direct Drive, Bias/Level/EQ Calibration System, 2 Motor/Closed Loop Dual Capstan, fluorescent displays, pitch control, tape: Norm, CrO2, FeCr, Metal, Dolby-B, response up to 25 - 18.500 Hz +/- 3 dB, 0.03% WRMS, +/- 0.12% DIN, two times RCA terminals in & outputs, 125 Diodes, 22 ICs,
    Versions:
    HB for UK market 220/240 V,
    HE for mainland Europe 220/240 V,
    D/DG for others 120/220/240 V selector, 49 W power consumption, wooden side panels as an option, made in Japan.
  • Net weight (2.2 lb = 1 kg)
  • 10.9 kg / 24 lb 0.1 oz (24.009 lb)
  • Source of data
  • -- Other type before this -same/similar characteristics - see exchange.
