Stereo Integrated Amplifier A-307R

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1999 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 352533

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Details
  • Hi-Fi equipment
  • Power type and voltage

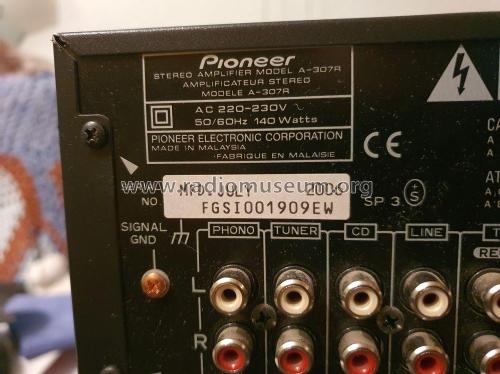

  • Alternating Current supply (AC) / 50/60 Hz, 220-230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 45 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Integrated Amplifier A-307R - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 114 x 307 mm / 16.5 x 4.5 x 12.1 inch
  • Notes

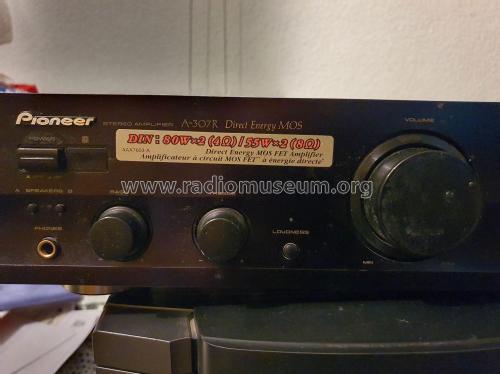

  • The Pioneer A307R integrated amplifier benefits from Pioneers' Direct Energy MOSFET transistor design which is linked directly to the speaker outputs. This efficient design of the Direct Energy MOSFET allows Pioneer to develop an advanced direct connection, a shorter signal path, and ground line combined with its internal symmetrical construction makes sure that the left and right channels are separated giving the best possible stereo reproduction for an amplifier of this price.

    The Pioneer A307R also features speaker switching which means that you can run 2 sets of speakers from one amplifier, so if you would like another set of speakers in another room without the need for a whole other system all you need to do is press the speaker A/B button and your music will come through in your second room.

    Specifications:

    • Power output: 45 watts per channel into 8 Ω (stereo)
    • Frequency response: 5 Hz to 100 kHz
    • Total harmonic distortion: 0.08%
    • Input sensitivity: 2.8 mV (MM), 200 mV (line)
    • Signal-to-noise ratio: 85 dB (MM), 10 6dB (line)
    • Output: 200 mV (line)
    • Imput Phono, Line, Tape 1 , Tape2, Aux. Tuner

    Accessories: remote control, batteries, power cord.

    See also the A-209R with Advanced Direct Energy MOD Power Amp.

  • Net weight (2.2 lb = 1 kg)
  • 5.9 kg / 12 lb 15.9 oz (12.996 lb)
  • Mentioned in
  • - - Manufacturers Literature (Pioneer A-307R. A-209R Operating instructions)
