Stereo Tuner TX-130L

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1982/1983
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 334028

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220/240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Tuner TX-130L - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 69 x 226 mm / 16.5 x 2.7 x 8.9 inch
  • Notes

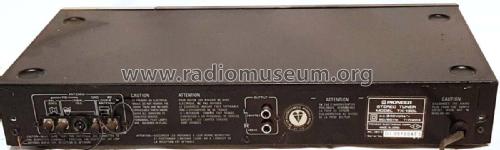

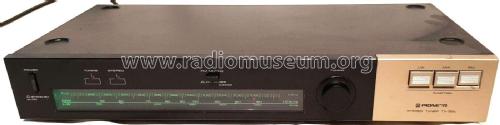

  • A hi-fi 3 band AM/FM stereo tuner with an analogue dial housed in a black metal case with a silver section front right corner. With rotary tuning control, push button switches for power on/standby, FM muting, AM and FM and an FM stereo indicator. On the back, RCA phono sockets for Line out, terminals for FM and AM antennae. Supplied with AM loop antenna and FM T-type antenna.

    Specification
    FM Tuner Section
    Usable Sensitivity 10.8dBf (1.9µV)
    50dB Quieting Sensitivity Mono; 17.3dBf (4.0µV)
    Stereo; 39.2dBf (50µV)
    Sensitivity (DIN) Mono; 0.85µV, Stereo; 39.8µV
    S/N Ratio (at 80dBf) Mono; 75dB, Stereo; 70dB
    Distortion (at 60dBf)
     Stereo 1kHz 0.2%
    Distortion (DIN)
     Stereo 1kHz 0.2%
    Capture Ratio 1.0dB
    Alt. Channel Selectivity 60dB
    Stereo Separation 1kHz 40dB
    Frequency Response 30Hz-15kHz +0.2dB,-1.0dB
    Image Response Ratio 55dB
    IF Response Ratio 80dB
    Muting Threshold 19.2dBf (5µV)
    Antenna Input 300Ω balanced, 75Ω unbalanced
    MW Tuner Section
    Sensitivity
     IHF, external antenna    		 30µV
    Selectivity 25dB
    S/N Ratio 50dB
    Image Response Ratio 40dB
    IF Response Ratio 70dB
    Antenna Accessory AM loop antenna
    LW Tuner Section
    Sensitivity
     IHF, external antenna    		 45µV
    Selectivity 25dB
    S/N Ratio 50dB
    Image Response Ratio 40dB
    IF Response Ratio 70dB
    Antenna Accessory AM loop antenna
    Audio Section
    FM (100% MOD)
    AM (30% MOD)    		 650mV/3.5kΩ
    200mV/3.5kΩ

    Versions/Power requirements
    HE Europe version  /  220/240 AC 50/60Hz
    HB UK version  /  220/240V AC 50/60Hz

    Power consumption: 11 watts

    Similar to the Pioneer TX-130 Stereo Tuner which has FM and MW only.

    A component of the Pioneer Syscom G20 hi-fi system.

  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • Mentioned in
  • - - Manufacturers Literature (Pioneer 1983 Stereo Components catalogue))
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual Pioneer TX-130L dated Apr 1982)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
