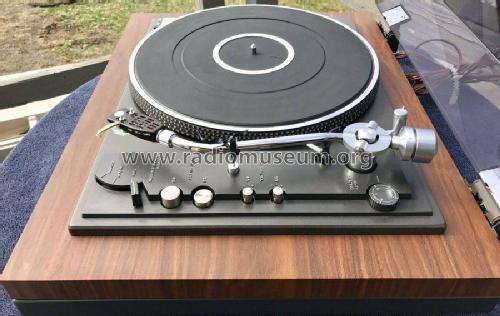

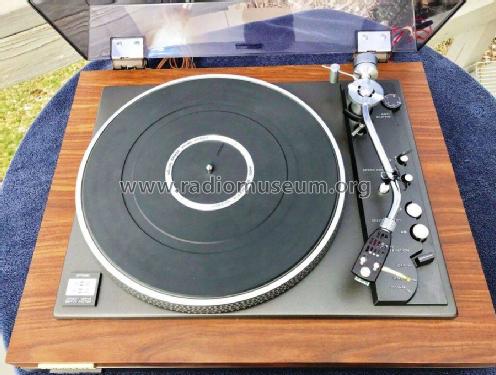

Stereo Turntable PL-55D

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1973 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 310254

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Turntable PL-55D - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 480 x 185 x 410 mm / 18.9 x 7.3 x 16.1 inch
  • Notes

  • Pioneer 2-Speed ( 33 & 45 rpm) DC servo direct drive Turntable Model PL-55D.
    Platter: 310 mm Aluminum-diecast alloy
    Cartridge Pioneer Model PC-Q1 (Induced Magnet Type)
    Stylus: PN-Q1
    Wooden base with anti-acoustic feedback suspension
    Dust Cover.
    See also Pioneer PL-55 Stereo Turntable - Specifications for the Pioneer PL-55D are common to those of the Pioneer PL-55 except for the Phono Cartridge.

  • Net weight (2.2 lb = 1 kg)
  • 11.2 kg / 24 lb 10.7 oz (24.67 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Specification from Service Manual for the PL-55 and PL-55D)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
