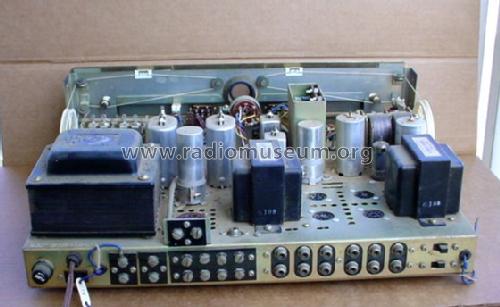

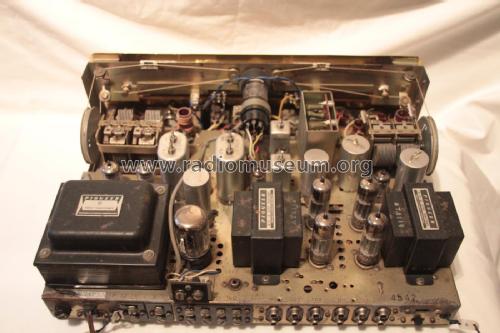

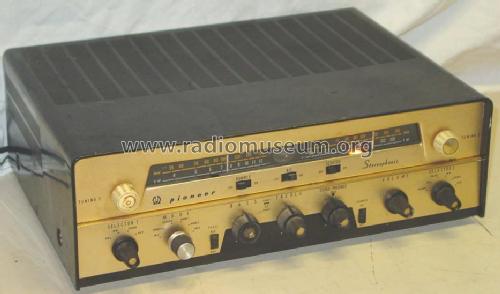

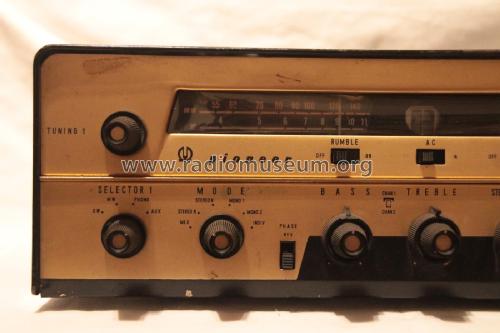

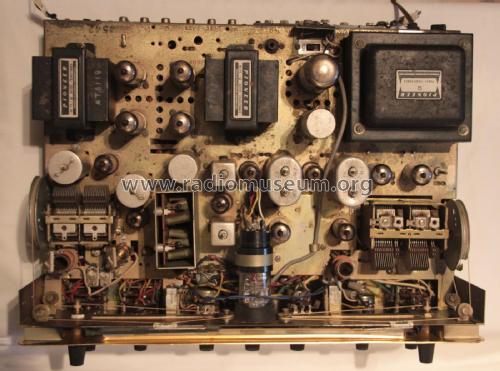

Stereophonic SM-B200A

• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85563

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6AQ8 6AQ8 6BA6 6BA6 6G-E12 6BA6 6BA6 12AX7 6BE6 6BE6 6BM8 6BM8 6BM8 6BM8 5AR4

• Number of Transistors
• 4

• Semiconductors
• 2SB73 2SB75 2SB73 2SB75

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereophonic SM-B200A - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 410 x 140 x 320 mm / 16.1 x 5.5 x 12.6 inch

• Notes
• 2 unabhängige Tuner, einer für MW/KW, einer für MW/FM. 3 Lautsprecher Ausgänge; Anschlüsse für Tape, Aux, Mikrofon, Kristall, Magnet.
  Wurde auch unter der Marke "Monarch" angeboten.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)
