• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1979/1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183222

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 540 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

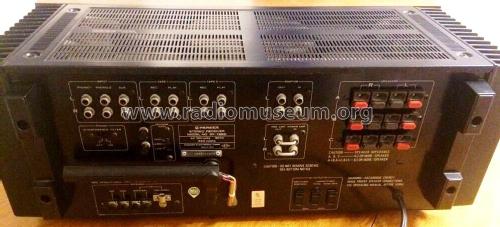

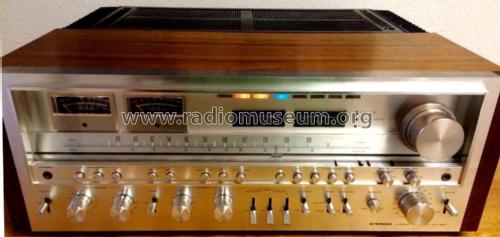

• Model: Stereo Receiver SX-1980 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 560 x 211 x 497 mm / 22 x 8.3 x 19.6 inch

• Notes
• Stereo Tuner Amplifier: Con amplificador de Potencia DC y sintonía al Tacto. Semiconductores: Fets: 12 ICs: 11 Transitores: 130 Diodos: 84

• Net weight (2.2 lb = 1 kg)
• 35.4 kg / 77 lb 15.6 oz (77.974 lb)

• Price in first year of sale
• 4,000.00 DM

• Literature/Schematics (1)
• audio técnica setiembre 1979, año 1 Nº 6

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
