• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73411

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• ECC85 6AN8 ECC83 ECC83 6E5 ECC85 6BE6 6BA6 6BA6 6AU6 ECL82 ECL82 ECL82 ECL82

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

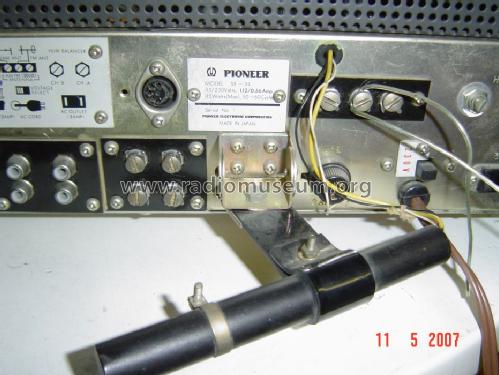

• Model: AM/FM Multiplex Receiver SX-34 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 405 x 135 x 360 mm / 15.9 x 5.3 x 14.2 inch

• Notes

• Similar to Allied 333 but not identical.

• Net weight (2.2 lb = 1 kg)
• 10.8 kg / 23 lb 12.6 oz (23.789 lb)

• Price in first year of sale
• 6,500.00 ATS

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.
