Stereo Receiver SX-828

Pioneer Corporation; Tokyo

  • Year
  • 1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 150847

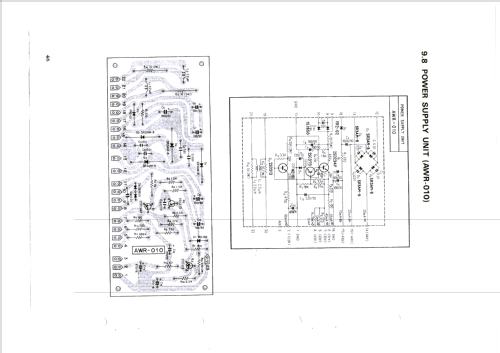

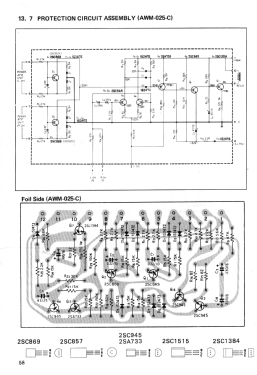

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 57
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 150 W (270 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Receiver SX-828 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 485 x 150 x 375 mm / 19.1 x 5.9 x 14.8 inch
  • Notes
  • AM/FM-Stereo-Receiver mit
    57 Transistoren, 4 FETs, 38 Dioden und 4 ICs.

    Dauerleistung, beide Kanäle gleichzeitig betrieben:

    • 2 x 75 Watt an 4 Ω bei 1.000 Hz
    • 2 x 60 Watt an 8 Ω bei 1.000 Hz
    • 2 x 54 Watt an 8 Ω 20 - 20.000 Hz (RMS)



  • Net weight (2.2 lb = 1 kg)
  • 17.8 kg / 39 lb 3.3 oz (39.207 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • Pioneer - mehr als nur HiFi 1972

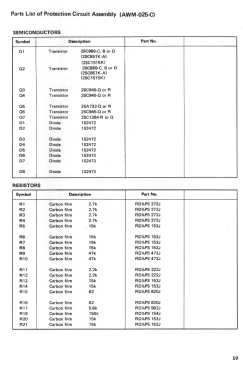

  • Literature/Schematics (1)
  • -- Original-techn. papers. (Serviceanleitung)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
