Stereo Receiver SX-9000
Pioneer Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Pioneer Corporation; Tokyo
- Year
- 1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150848
Prospekt
Pioneer Print Ad 1971

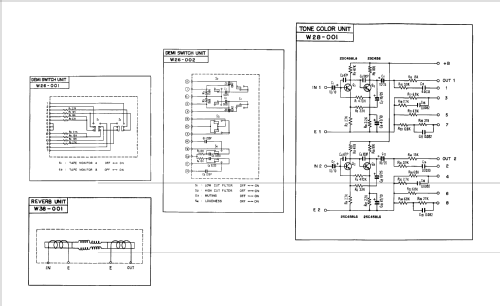

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Receiver SX-9000 - Pioneer Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 522 x 194 x 344 mm / 20.6 x 7.6 x 13.5 inch
- Notes
- AM/FM-Stereo-Receiver mit 240 Watt Musikleistung an 4 Ohm.
5 IC's.
- Net weight (2.2 lb = 1 kg)
- 15.7 kg / 34 lb 9.3 oz (34.581 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- Pioneer - mehr als nur HiFi 1972
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
