Tape Deck RT-2022
Pioneer Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Pioneer Corporation; Tokyo
- Year
- 1976
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 273963

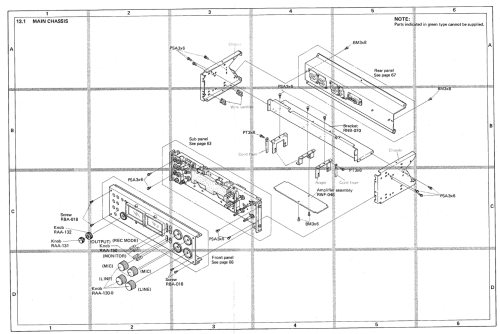

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org
- Model: Tape Deck RT-2022 - Pioneer Corporation; Tokyo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 460 x 552 x 274 mm / 18.1 x 21.7 x 10.8 inch
- Notes
-

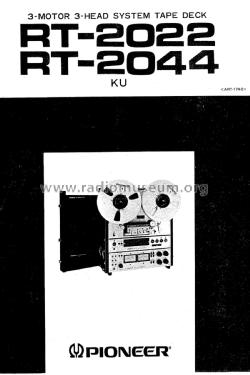

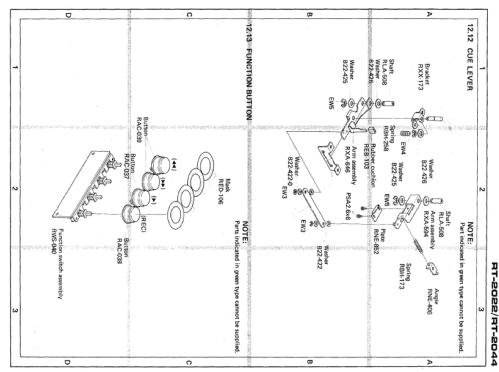

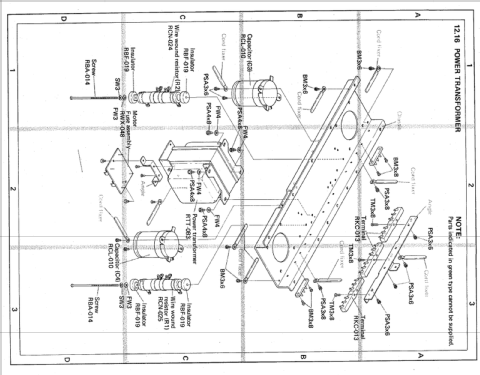

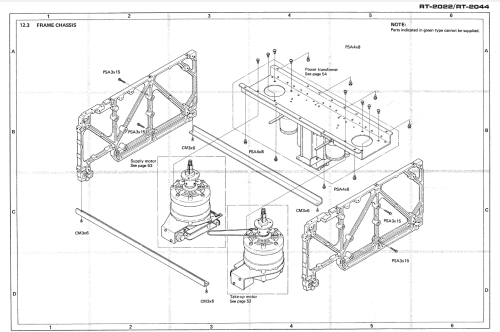

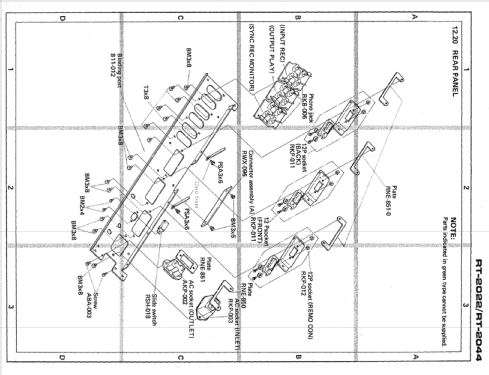

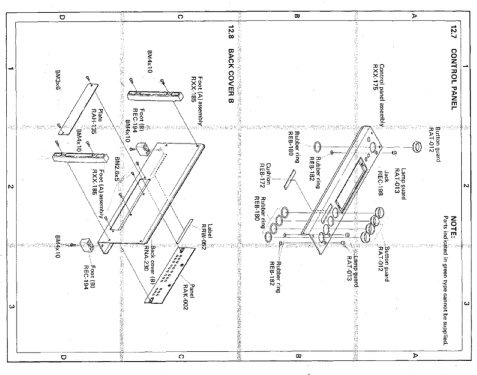

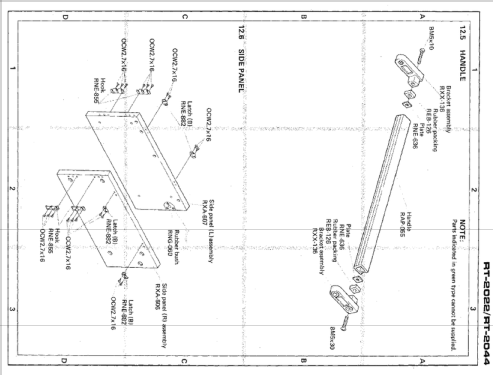

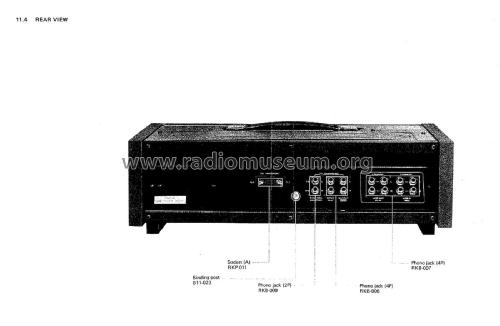

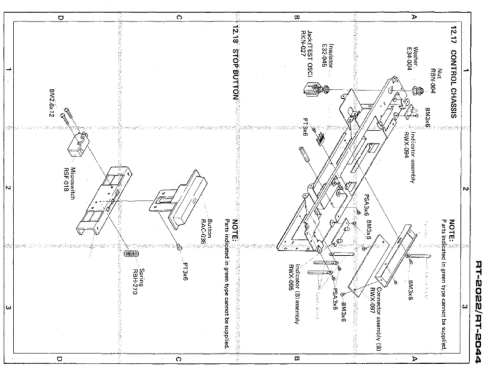

Pioneer 3-Motor 3-Head Tape Recorder Model RT-2022.
Professional open reel tape system.
2-Track 2-Channel Stereo
Speed: 19 & 38 cm/s 7 1⁄2 15 ips
Heads: 1 x playback, 1 x record, 1 x erase
Motor: 2 x reel, 1 x capstan
Reel size: up to 10.5 inch reel
Equalization: NAB, IEC
Wow and flutter: 0.04% (15 ips)
Frequency response: 30Hz to 28kHz (15 ips)
Signal to Noise Ratio: 60dB
Total harmonic distortion: 0.8%
Crosstalk: 60dB
Input: 34mV (line), 0.11mV (mic) Output: 0.45V (line)
Bias 125kHzSee also Model RT-2044
Note:

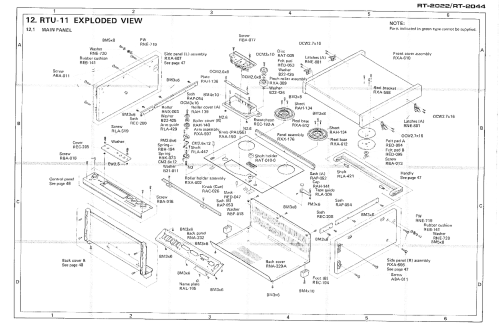

1 x RTU-11/2T transport unit,
1 x TAU-11 amplifier unit
- Net weight (2.2 lb = 1 kg)
- 28.5 kg / 62 lb 12.4 oz (62.775 lb)
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Funkschau (23/1976, S. 991 / HiFi 76 in Düsseldorf)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
