• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1978/1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90142

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Tuner TX-606 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 147 x 264 mm / 16.5 x 5.8 x 10.4 inch

• Notes

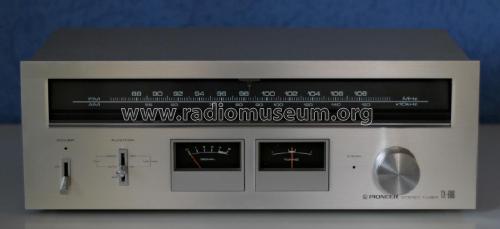

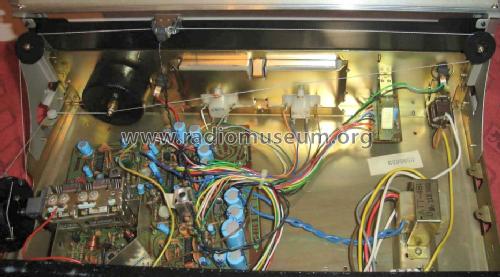

• A hi-fi AM/FM stereo tuner with an analogue dial housed in a metal case. With Signal Strength and Tuning meters, Function Switch (FM Mono, FM Auto, AM), Stereo indicator, terminals for AM and FM antennae and Ground, a built-on adjustable AM ferrite bar antenna and RCA phono sockets for Line Output.

  Specification
  FM SECTION	87.5-108 MHz
  Sensitivity (IHF) mono	10.7dBf (1.9µV)
  Signal-to-noise ratio (IHF) at 65 dBf stereo	74dB
  Total Harmonic Distortion (1 kHz) stereo	0.25%
  Capture ratio	1.0dB
  Selectivity (±400 kHz)	60dB
  Frequency response stereo	20Hz-15kHz +0.2dB,-1dB
  Stereo separation (1 kHz)	40dB
  Image response ratio	60dB
  AM SECTION	525-1,605kHz
  Sensitivity (IHF) (ext. antenna)	15µV
  Signal-to-noise ratio	50dB
  Image response ratio	40dB
  Selectivity	30dB
  AUDIO SECTION
  Output level/impedance
  FM (100% MOD)	650mV/3.3kΩ
  AM (30% MOD)	200mV/5.4kΩ

  Versions/Power requirements
  220/240 V AC 50/60Hz with voltage selector
  110/120/220/240 V AC 50/60Hz with voltage selector
                            and FM De-Emphasis switch (25µS, 50µS, 75µS)

  Power consumption:  6W

  Made in Japan and Belgium

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original prospect or advert (1978/79 Pioneer Hi-Fi Stereo catalogue)

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
