- Country
- United States of America (USA)
- Manufacturer / Brand
- Pla-Pal Radio and Television Co.; Chicago, IL
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105667
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 6.5 inch = 16.5 cm
- Material
- Wooden case
- from Radiomuseum.org

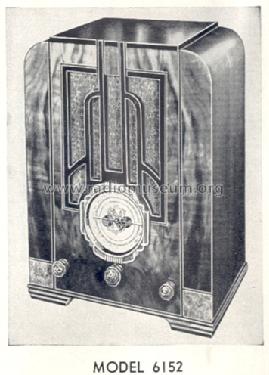

- Model: 6152 - Pla-Pal Radio and Television
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 11 x 15 x 9 inch / 279 x 381 x 229 mm
- Notes
- Illuminated airplane dial.
- Literature/Schematics (1)
- Pla-Pal 1936 Radio catalogue
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
- Other Models
-
Here you find 63 models, 63 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Pla-Pal Radio and Television Co.; Chicago, IL
