• Country
• Germany

• Manufacturer / Brand
• Playtronic GmbH; Heeslingen

• Year
• 1985 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 269596

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• TL441 LM324 µA747 MC1458 XR2206 µA741 TL081 µA7815 µA7915 BC108B BC178 1N4148 ZPD6,2 B80C1000

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

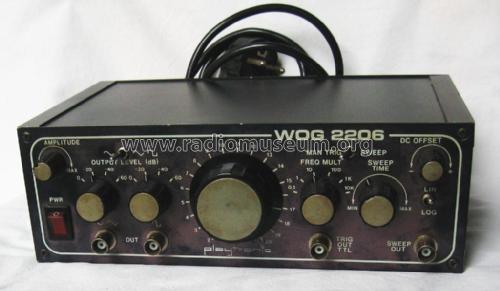

• Model: Funktions-Wobbelgenerator - Bausatz WOG-2206 - Playtronic GmbH; Heeslingen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 240 x 80 x 170 mm / 9.4 x 3.1 x 6.7 inch

• Notes

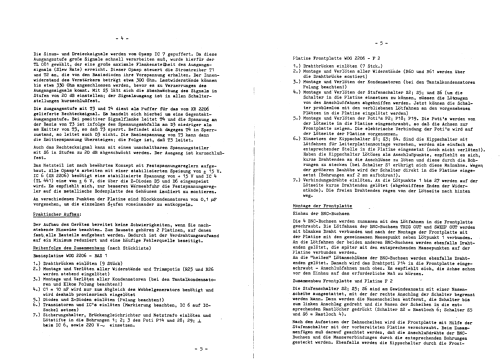

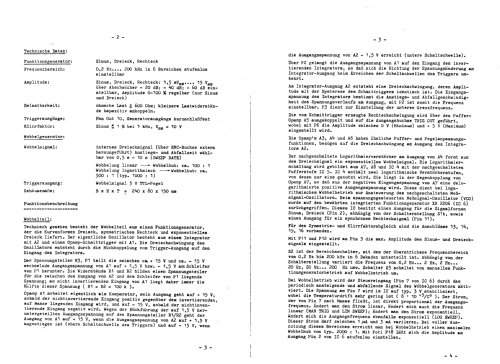

• Sinus, Sägezahn und Rechtecksignale von 0,2 Hz bis 200 kHz
  Lieferbar als Bausatz oder Fertiggerät.

  Jeder Halbleitertyp ist einmal gelistet.

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 5 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Playtronic GmbH; Heeslingen
