• Country
• Great Britain (UK)

• Manufacturer / Brand
• Plessey; Ilford

• Year
• 1962 ?

• Category
• Antenna (Aerial) or Coupler

• Radiomuseum.org ID
• 329493

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org

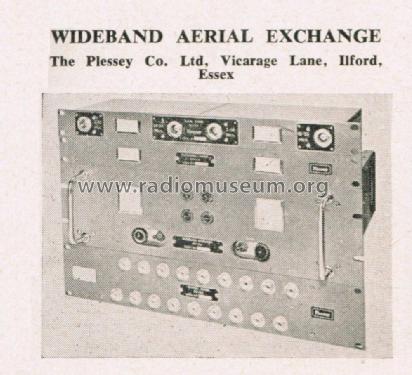

• Model: Wideband Aerial Exchange PV132-139 - Plessey; Ilford

• Shape
• Rack

• Notes

• This is an aerial multicoupler and switching system designed to enable a wideband aerial combination to feed a large number of single or diversity receivers.
  Operating on frequency band 2 to 30 MHz

• Mentioned in
• -- Original-techn. papers. (Electronic Engineering, volume 34, year 1962.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
