• Country
• Great Britain (UK)

• Manufacturer / Brand
• Plustronics Ltd.; Newcastle

• Year
• 1982

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 323052

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

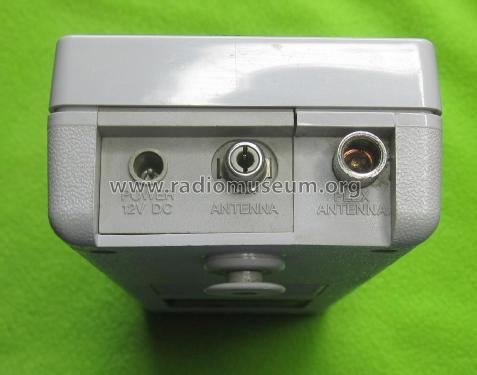

• Model: Midland Ready Rescue 77-810UK - Plustronics Ltd.; Newcastle

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 82 x 196 x 44 mm / 3.2 x 7.7 x 1.7 inch

• Notes

• Transistors; RF Driver output 2SC2314, RF power out 2SC2078
  RF power output 4 watts
  UK CB 40 Channels, FM, 27.60125 MHz - 27.99125 MHz

  Marked 27/81 type approval, indicating legal to use in the UK.

  Dimensions exclude knobs.

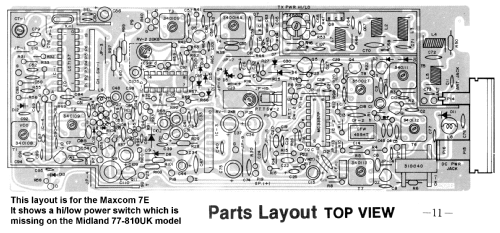

  See also Maxcom 7E

  and Midland 77-810 International version

  Made in Korea

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
