• Country
• Finland

• Manufacturer / Brand
• Pohjoismainen Sähkö-Osakeyhtiö,Helsinki

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209632

• Number of Tubes
• 9

• Valves / Tubes
• Z77 L77 X99 W77 EM4 D77 DH77 N77 U78

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

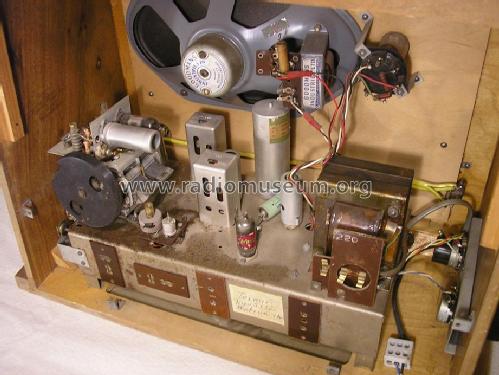

• Model: Schäfer 3413Z - Pohjoismainen Sähkö-Osakeyhtiö

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 500 x 370 x 240 mm / 19.7 x 14.6 x 9.4 inch

• Notes
• Dial lamps: 2x 6,3V / 0,3A
  Loudspeaker: 6,5 x 9" or 6 x 10"

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
