• Country
• United States of America (USA)

• Manufacturer / Brand
• Cornell-Dubilier Electric (CDE); Seattle (WA)

• Year
• 1976

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 190208

• • Brand: CDE

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

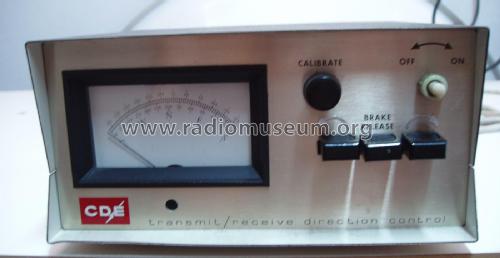

• Model: Rotor System HAM II/CDR44 - Cornell-Dubilier Electric CDE;

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 205 x 105 x 210 mm / 8.1 x 4.1 x 8.3 inch

• Notes
• The HAM II rotor system is designed to accomodate amateur antennas with a maximum of 7.5 square feet of wind area; the HAM II provides a full 360° range of rotation and a meter scale read out for accurate position indication; direction reading meter scale 5° increments; cable 2 wires no. 18, 6 wires no. 22 with maximum lenght 45 meters; rotation time 45-60 seconds; permissable mast size from 35 mm to 52 mm.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Source of data

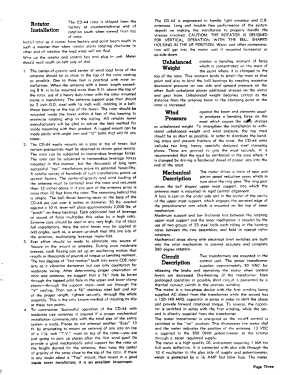

• -- Original-techn. papers.

• Author
• Model page created by Emilio Focosi. See "Data change" for further contributors.
