• Country
• United States of America (USA)

• Manufacturer / Brand
• Polarad Electronics Corp.- Long Island, NY

• Year
• 1955 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 132318

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Microwave Signal Generator EHF - Polarad Electronics Corp.-

• Shape
• Rack

• Dimensions (WHD)
• 19 x 16.5 x 26.5 inch / 483 x 419 x 673 mm

• Notes

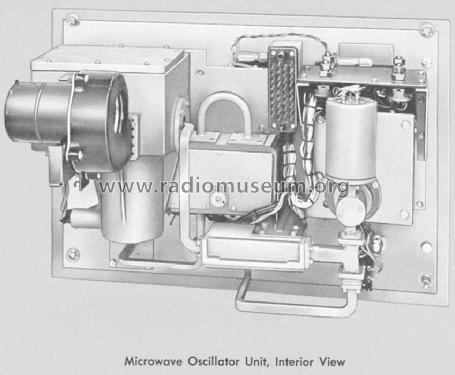

• EHF signal generator covered from 18 to 39.7 GHz. It was composed by one basic unit, model HU-2A, and seven plug-in tuning units:
  G1822 - 18 to 22 GHz
  G2225 - 22 to 25 GHz
  G2427 - 24.7 to 27.5 GHz
  G2730 - 27.27 to 30 GHz
  G3033 - 29.7 to 33.52 GHz
  G3336 - 33.53 to 36.25 GHz
  G3540 - 35.1 to 39.7 GHz.
  The standard tuning plug-in modules were calibrated to 0.1%; output power -10 to -90 dbm. Also available with -X suffix: output 0 to -40 dbm.
  Tuning units could be also ordered separately at prices from 2035 to 2340 USD each.

• Price in first year of sale
• 15,625.00 $

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
