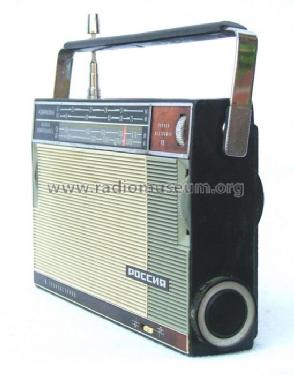

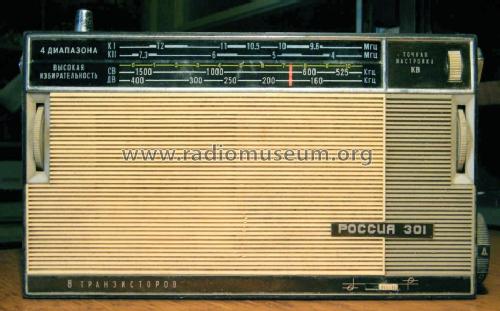

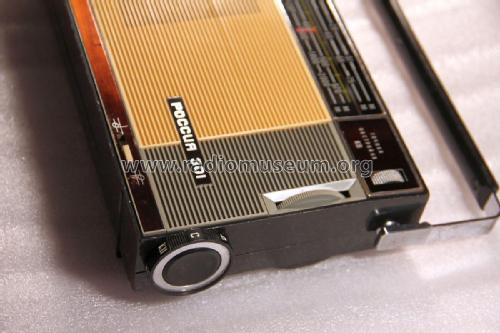

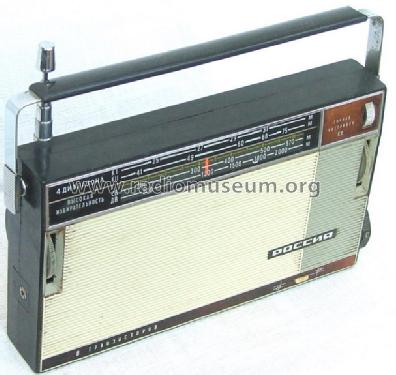

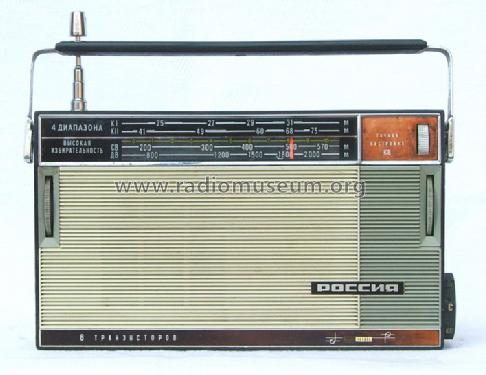

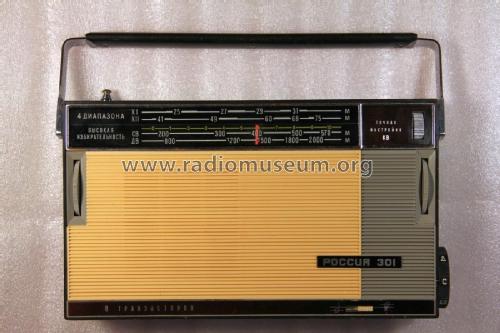

Rossiâ {Россия} 301
Industrial Union Poliot, Cheliabinsk
- Country
- Soviet Union
- Manufacturer / Brand
- Industrial Union Poliot, Cheliabinsk
- Year
- 1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 97214
-
- alternative name: Cheliabinsk Radio Works IU "Poliot"

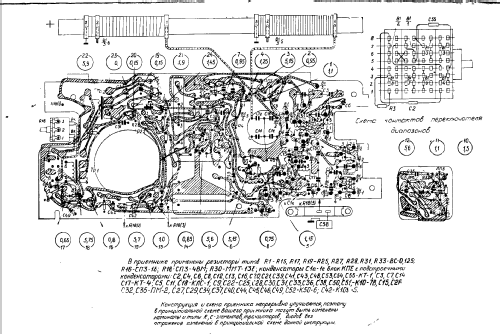

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

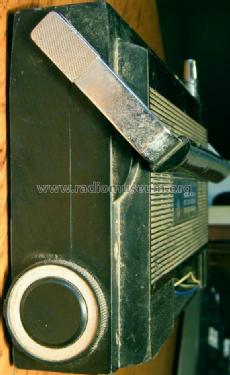

- Model: Rossiâ {Россия} 301 - Industrial Union Poliot,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 215 x 125 x 47 mm / 8.5 x 4.9 x 1.9 inch
- Notes
- Coverage MW, LW and 2× SW (24,8-31,5 m, 41-75,9 m). Export variant - model "Astrad" (see RMorg).
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Price in first year of sale
- 73.00 RUR
- Mentioned in
- - - Data from my own collection
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Zenonas Langaitis. See "Data change" for further contributors.
