• Country
• United States of America (USA)

• Manufacturer / Brand
• Polytronics Labaratory Inc., Clifton, N. J.

• Year
• 1962 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 146850

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6DS4 12AT7 12AT7 6BJ6 6BH6 6BH6 6AV6 12AX7A 6BQ5 12BH7A 6BQ5

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Line / Batteries (any type) / 110-120 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Poly-Comm PC-N-12 - Polytronics Labaratory Inc.,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Any 4 of CB Channels 1 thru 22

• Literature/Schematics (1)

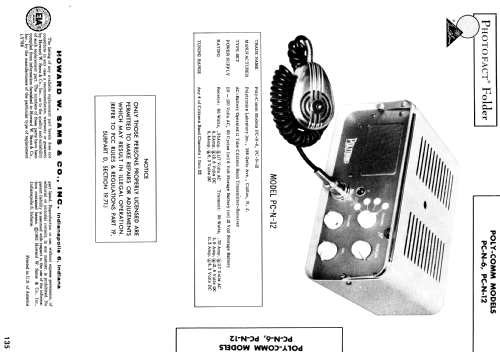

• Photofact Folder, Howard W. SAMS (CB Vol.3 Folder 135)

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
