• Country
• Spain

• Manufacturer / Brand
• Poney Radio, José Carreras; Barcelona

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273222

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK92 DF91 DAF91 DL94

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC 110-125; DC 150 / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

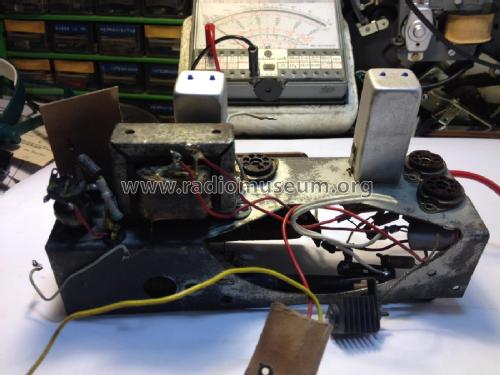

• Model: B.T. 1421 - Poney Radio, José Carreras;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 185 x 135 x 70 mm / 7.3 x 5.3 x 2.8 inch

• Mentioned in
• -- Schematic

• Author
• Model page created by Ignacio Baquedano. See "Data change" for further contributors.
