- Country
- Italy
- Manufacturer / Brand
- Unaohm Start, Ohm, E. Pontremoli; Milano
- Year
- 1947
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 167476
Da: 'Radio Industria' numero 131-132 1947.
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 2 x 4,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

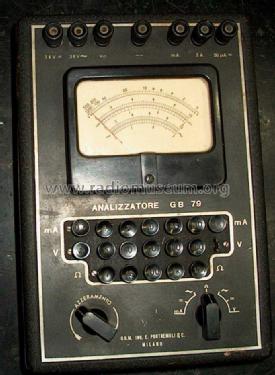

- Model: GB-79 - Unaohm Start, Ohm, E.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 205 x 100 x 290 mm / 8.1 x 3.9 x 11.4 inch
- Notes
-
Analizzatore/tester di precisione. Comandi a pulsante. Resistenza interna 20.000 Ω/V.
Portate:
Tensoni CC: 1 - 3 - 10 - 30 - 100 - 300 - 1.000 - 3.000 V f. s.
Tensioni CA: 3 - 10 - 30 - 100 - 300 - 1.000 - 3.000 V f. s.
Correnti CC: 50 µA - 0.3 - 1 - 3 - 10 - 30 - 100 - 1.000 - 3.000 mA f. s.
Correnti CA: 0.3 - 1 - 3 - 10 - 30 - 100 - 1.000 - 3.000 mA f. s.
Resistenze: da 0.2 Ω a 20 MΩ in 5 portate.
- Net weight (2.2 lb = 1 kg)
- 3.2 kg / 7 lb 0.8 oz (7.048 lb)
- Mentioned in
- -- Original prospect or advert (Radio Industria, numeri 131-132, novembre- dicembre 1947)
