Break FM78
Prandoni S.p.A., Dario; Treviglio
- Country
- Italy
- Manufacturer / Brand
- Prandoni S.p.A., Dario; Treviglio
- Year
- 1978 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 307932
- Number of Transistors
- 5
- Semiconductors
- BF255 BF255 BF253 BF253 BF253 TBA120 SN16975 BB100 Diode_Zener SFD80 1N4002 1N4002 1N4002 1N4002
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220; 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

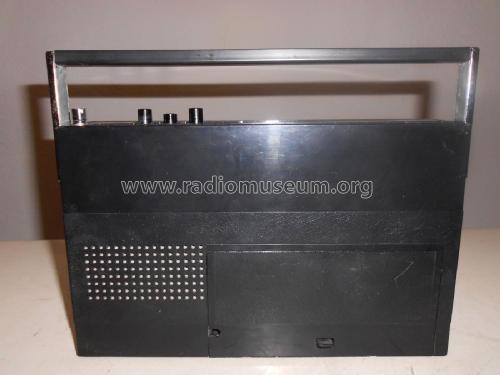

- Model: Break FM78 - Prandoni S.p.A., Dario;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 247 x 155 x 65 mm / 9.7 x 6.1 x 2.6 inch
- Notes
-
controllo volume - antenna interna in ferrite - maniglia di trasporto - antenna telescopica esterna . commutatori on/off - AM - FM - frequency range: FM 87/104 MHz - AM 51/1620 kHz. Zener 6,5 V.
- Net weight (2.2 lb = 1 kg)
- 0.780 kg / 1 lb 11.5 oz (1.718 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
