• Country
• Italy

• Manufacturer / Brand
• Prandoni S.p.A., Dario; Treviglio

• Year
• 1971 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 349522

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF163 BF163 BC113 BF153 BF153 BF153 AC192 BC270 10336 AC142 AC141 AA123 AA123 AA121 B30C500

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

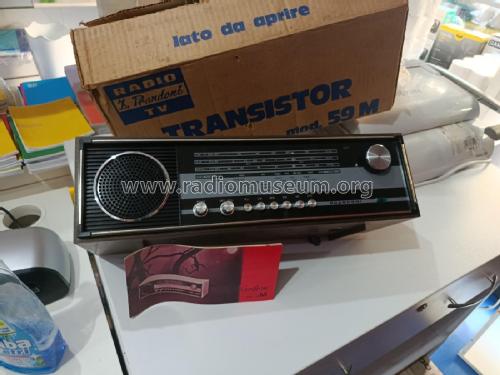

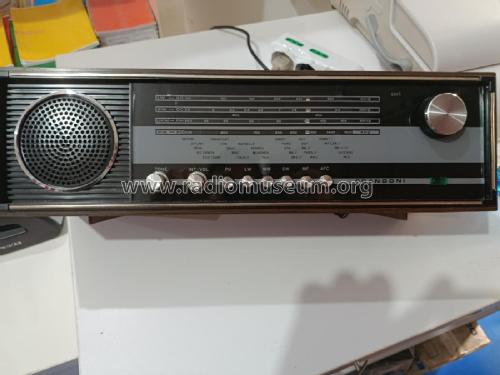

• Model: Radio a Transistor M 59 - Prandoni S.p.A., Dario;

• Notes

• Lo schema manca del diagramma della pulsantiera per cui l'indicazione AM/FM si può ricavare solo dalle 2 antenne collegate ciascuna ad un proprio circuito.

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
