• Country
• United States of America (USA)

• Manufacturer / Brand
• Precision Apparatus Co. (Pacotronics); Brooklyn - Elmhurst - Glendale, NY / Chicago, IL

• Year
• 1950

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 152174

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 5Y3GT

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org

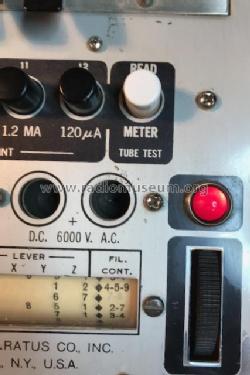

• Model: Tube Tester 10-54 - Precision Apparatus Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14 x 7 x 18 inch / 356 x 178 x 457 mm

• Notes

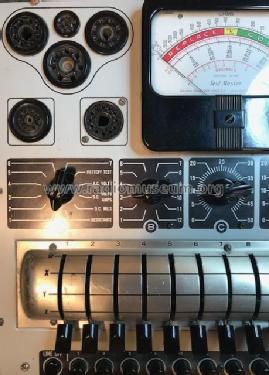

• This tube tester has sockets for folowing type tubes: Sub-Min 8 socket, Sub-Min 7 socket, 12 pin socket, 4 prong socket, 5 prong socket, 6 prong socket, Combination 7 prong socket, Octal socket, Loctal socket, Button 7 Pin socket (Miniature), Button 9 Pin socket (Noval), Acorn Type socket.

• Price in first year of sale
• 140.00 USD

• Author
• Model page created by Ashis Mukerjea. See "Data change" for further contributors.
