54 Range Dual Sensivity Tester 858-P
Precision Apparatus Co. (Pacotronics); Brooklyn - Elmhurst - Glendale, NY / Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Precision Apparatus Co. (Pacotronics); Brooklyn - Elmhurst - Glendale, NY / Chicago, IL
- Year
- 1947 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 97726

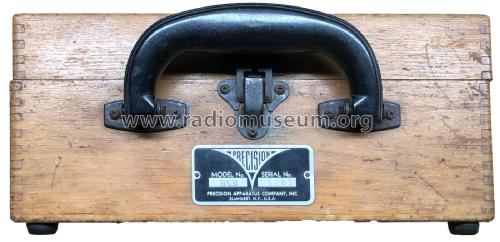

Precision Apparatus Mod 858 Serial1115
Precision Apparatus Mod 858 Serial 1115

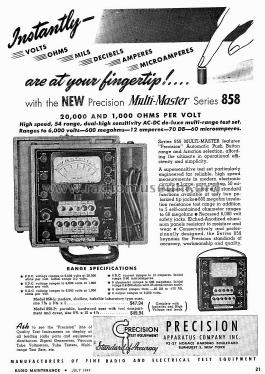

From July 1947 Radio-Maintenance magazine.
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 4.5 & 45 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 54 Range Dual Sensivity Tester 858-P - Precision Apparatus Co.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 9 x 10 x 4.5 inch / 229 x 254 x 114 mm
- Notes
-
Push-button selection of ranges and functions.
Requires 3 x 1.5V Eveready 935 and 1 x 15V Eveready 411 and 1 x 30V Eveready 413 batteries.
DCV: 0-3-6-12-60-300-600-1200-6000
ACV: 0-3-6-12-60-300-600-1200-6000
Current: 0-60-120uA, 0-1.2-12-120-600mA, 0-1.2-12A
- Price in first year of sale
- 49.94 US
- Source of data
- -- Original prospect or advert
- Mentioned in
- Radio-Maintenance magazine July 1947
- Literature/Schematics (1)
- 1951 Newark catalog Nº 51
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
